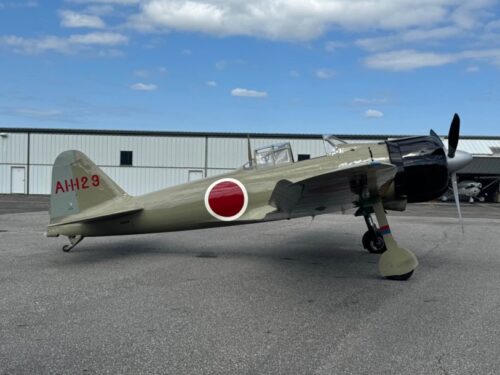

Mitsubishi A6M Zero

The Mitsubishi A6M Zero was a long-range carrier-based fighter aircraft formerly manufactured by Mitsubishi Aircraft Company, a part of Mitsubishi Heavy Industries, and operated by the Imperial Japanese Navy from 1940 to 1945.

The A6M was designated as the Mitsubishi Navy Type 0 carrier fighter, or the Mitsubishi A6M Reisen.

Variants

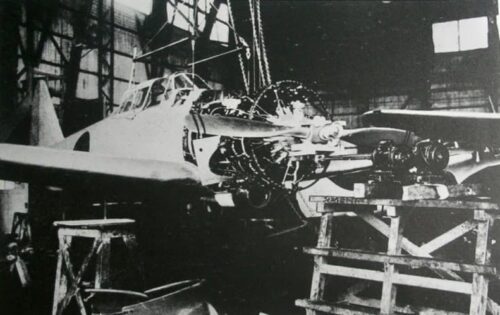

A6M1, Type 0 Prototypes

The first two A6M1 prototypes were completed in March 1939, powered by the 580 kW (780 hp) Mitsubishi Zuisei 13 engine with a two-blade propeller.

It first flew on 1 April, and passed testing within a remarkably short period.

By September, it had already been accepted for Navy testing as the A6M1 Type 0 Carrier Fighter, with the only notable change being a switch to a three-bladed propeller to cure a vibration problem.

A6M2a Type 0 Model 11

While the navy was testing the first two prototypes, they suggested that the third be fitted with the 700 kW (940 hp) Nakajima Sakae 12 engine instead.

Mitsubishi had its own engine of this class in the form of the Kinsei, so they were somewhat reluctant to use the Sakae.

Nevertheless, when the first A6M2 was completed in January 1940, the Sakae’s extra power pushed the performance of the Zero well past the original specifications.

The new version was so promising that the Navy had 15 built and shipped to China before they had completed testing.

They arrived in Manchuria in July 1940, and first saw combat over Chungking in August.

There they proved to be completely untouchable by the Polikarpov I-16s and I-153s that had been such a problem for the A5Ms when in service.

In one encounter, 13 Zeros shot down 27 I-15s and I-16s in under three minutes without loss.

After hearing of these reports, the navy immediately ordered the A6M2 into production as the Type 0 Carrier Fighter, Model 11.

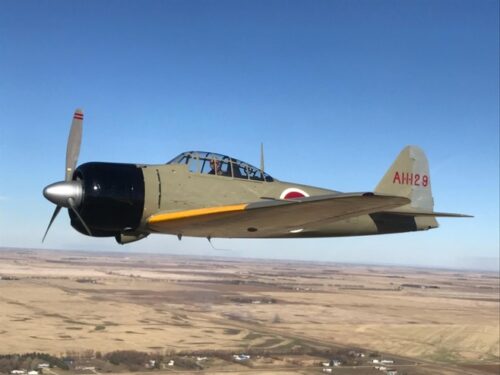

A6M2b Type 0 Model 21

After the delivery of the 65th aircraft, a further change was worked into the production lines, which introduced folding wingtips to allow them to fit on aircraft carriers.

The resulting Model 21 would become one of the most produced versions early in the war.

A feature was the improved range with 520 l (140 US gal) wing tank and 320 l (85 US gal) drop tank.

When the lines switched to updated models, 740 Model 21s had been completed by Mitsubishi, and another 800 by Nakajima.

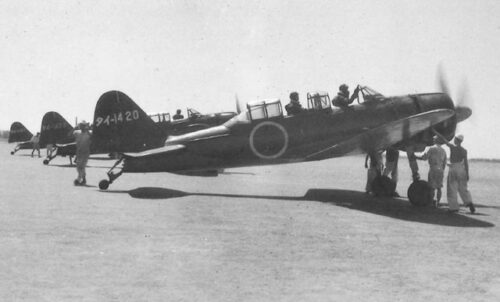

Two other versions of the Model 21 were built in small numbers, the Nakajima-built A6M2-N “Rufe” floatplane (based on the Model 11 with a slightly modified tail), and the A6M2-K two-seat trainer of which a total of 508 were built by Hitachi and the Sasebo Naval Air Arsenal.

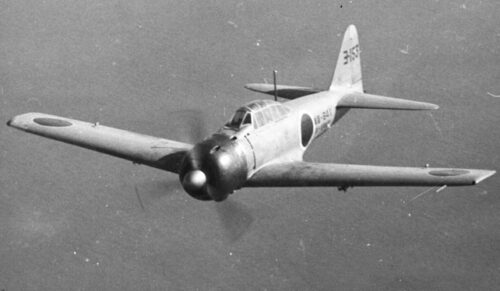

A6M3 Type 0 Model 32

A6M3 Model 32.

In 1941, Nakajima introduced the Sakae 21 engine, which used a two-speed supercharger for better altitude performance, and increased power to 840 kW (1,130 hp).

A prototype Zero with the new engine was first flown on 15 July 1941.

The new Sakae was slightly heavier and somewhat longer due to the larger supercharger, which moved the centre of gravity too far forward on the existing airframe.

To correct for this, the engine mountings were cut back by 185 mm (7.3 in) to move the engine toward the cockpit.

This had the side effect of reducing the size of the main fuselage fuel tank (located between the engine and the cockpit) from 518 l (137 US gal) to 470 l (120 US gal).

The cowling was redesigned to enlarge the cowl flaps, revise the oil cooler air intake, and move the carburettor air intake to the upper half of the cowling.

The wings were redesigned to reduce span, eliminate the folding tips, and square off the wingtips.

The inboard edge of the aileron was moved outboard by one rib, and the wing fuel tanks were enlarged accordingly to 420 l (110 US gal).

The two 20 mm wing cannon were upgraded from the Type 99 Mark l to the Mark II, which required a bulge in the sheet metal of the wing below each cannon.

The wings also included larger ammunition boxes and thus allowing 100 rounds per cannon.

The Sakae 21 engine and other changes increased maximum speed by only 11 km/h (6.8 mph) compared to the Model 21, but sacrificed nearly 1,000 km (620 mi) of range.

Nevertheless, the navy accepted the type and it entered production in April 1942.

This variant was flown by only a small number of units, and only 343 were built.

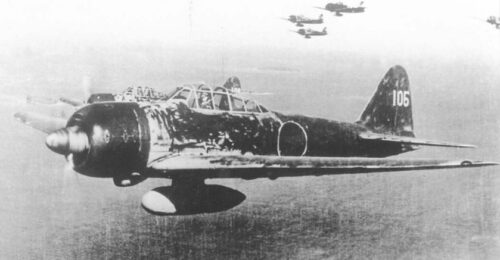

A6M3 Type 0 Model 22

In order to correct the deficiencies of the Model 32, a new version with folding wingtips and redesigned wing was introduced.

The fuel tanks were moved to the outer wings, fuel lines for a 330 l (87 US gal) drop tank were installed under each wing and the internal fuel capacity was increased to 570 l (150 US gal).

More importantly, it regained its capabilities for long operating ranges, similar to the previous A6M2 Model 21, which was vastly shortened by the Model 32.

However, before the new design type was accepted formally by the Navy, the A6M3 Model 22 already stood ready for service in December 1942.

Approximately 560 aircraft of the new type had been produced in the meantime by Mitsubishi Jukogyo K.K.

The Model 32, 22, 22 kou, 52, 52 kou and 52 otsu were all powered by the Nakajima (Sakae) 21 engine.

That engine kept its designation in spite of changes in the exhaust system for the Model 52.

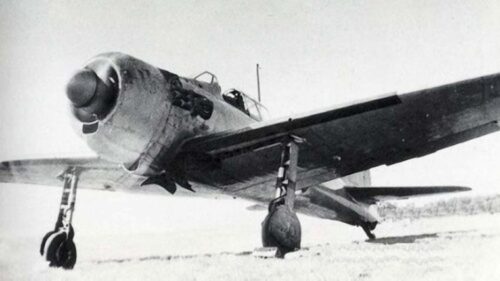

A6M4 Type 0 Model 41/42

Some researchers believe “A6M4” was applied to one or two prototype planes fitted with an experimental turbo-supercharged Sakae engine designed for high altitude.

Mitsubishi’s involvement in the project was quite limited,as the unmodified Sakae engine was made by Nakajima.

The design and testing of the turbo-supercharger was the responsibility of the First Naval Air Arsenal.

The prototype engines nevertheless provided useful experience for future engine designs.

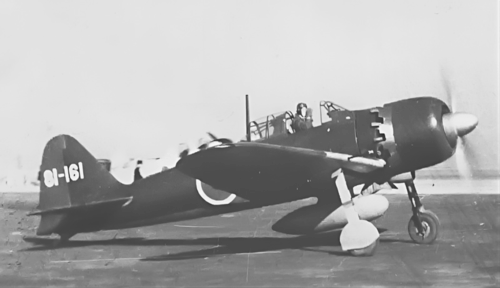

A6M5 Type 0 Model 52

Produced first by Mitsubishi, most Model 52s were made by Nakajima.

The prototype was made in June 1943 by modifying an A6M3 and was first flown in August 1943.

Nakajima manufactured the Model 52 at its Koizumi plant in Gunma Prefecture.

Subsequent variants included:

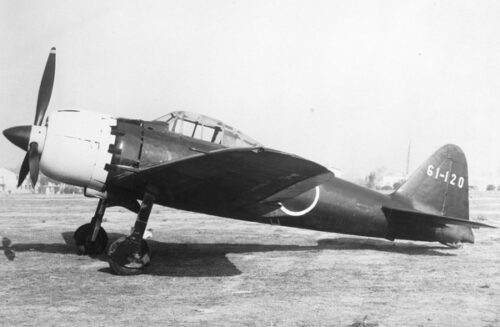

A6M5a, Model 52,Kō, 52a

Starting at Mitsubishi number 4651, an armament change substituted the belt-fed Type 99-2 Mark 4 cannon, with 125 rounds per gun, in place of the drum-fed Type 99-2 Mark 3 cannon that carried 100 rounds per gun.

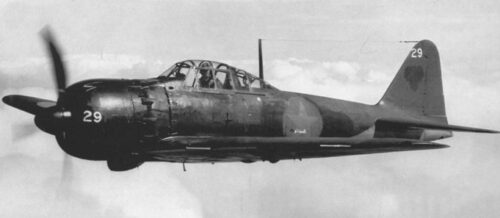

A6M5b, Model 52,Otsu, 52b

Armament change, The first of this variant was completed in April 1944 and it was produced until October 1944.

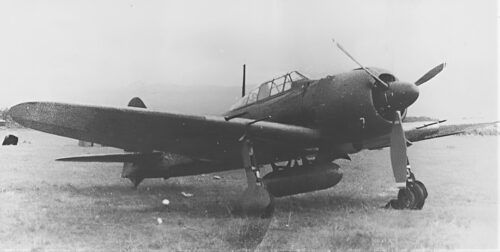

A6M5c, Model 52,Hei, 52c

Armament change, The first of this variant was completed in September 1944, it was used mainly for intercepting B-29s and special attack.

A6M5-S, A6M5 Yakan Sentōki

Armament change, To intercept B-29s and other night-flying aircraft, an air arsenal converted some Model 52s to night fighters.

A6M6 Type 0 Model 53

Only one prototype was produced.

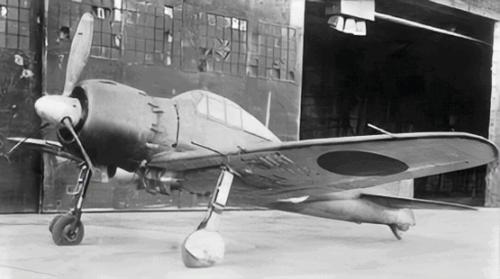

A6M7 Type 0 Model 62/63

Entering production in May 1945, the A6M7 was also used in the special attack role.

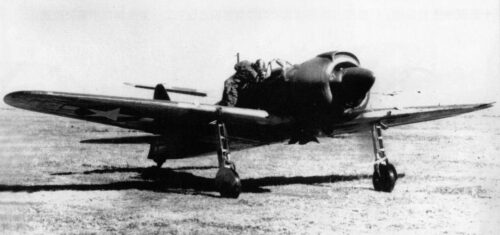

A6M8 Type 0 Model 64

Two prototypes were completed in April 1945 but the chaotic situation of Japanese industry and the end of the war obstructed the start of the ambitious program of production for 6,300 A6M8s, only the two prototypes being completed and flown.

Specifications

Crew

1

Length

9.06 m (29 ft 9 in)

Wingspan

12 m (39 ft 4 in)

Height

3.05 m (10 ft 0 in)

Wing area

22.44 m2 (241.5 sq ft)

Aspect ratio

6.4

Airfoil

Root

MAC118 or NACA 2315

Tip

MAC118 or NACA 3309

Empty weight

1,680 kg (3,704 lb)

Gross weight

2,796 kg (6,164 lb)

Max take-off weight

2,796 kg (6,164 lb)

Fuel capacity

518 l (137 US gal; 114 imp gal) internal + 1x 330 l (87 US gal; 73 imp gal) drop tank

Powerplant

1 × Nakajima NK1C Sakae-12 14-cylinder air-cooled radial piston engine,

700 kW (940 hp) for take-off

710 kW (950 hp) at 4,200 m (13,800 ft)

Propellers

3-bladed Sumitomo-Hamilton constant-speed propeller

Performance

Maximum speed

533 km/h (331 mph, 288 kn) at 4,550 m (14,930 ft)

Cruise speed

333 km/h (207 mph, 180 kn)

Never exceed speed

600 km/h (370 mph, 320 kn)

Range

1,870 km (1,160 mi, 1,010 nmi)

Ferry range

3,102 km (1,927 mi, 1,675 nmi)

Service ceiling

10,000 m (33,000 ft)

Rate of climb

15.7 m/s (3,090 ft/min)

Time to altitude

6,000 m (20,000 ft) in 7 minutes 27 seconds

Wing loading

107.4 kg/m2 (22.0 lb/sq ft)

Power/mass

0.294 kW/kg (0.179 hp/lb)

Armament

Guns

Divergence of trajectories between 7.7 mm and 20 mm ammunition

2× 7.7 mm (0.303 in) Type 97 aircraft machine guns in the engine cowling, with 500 rounds per gun.

2× 20 mm (0.787 in) Type 99-1 Mk.3 cannon in the wings, with 60 rounds per gun.

Bombs

2× 60 kg (130 lb) bombs

Or

1× fixed 250 kg (550 lb) bomb for kamikaze attacks.
