Macchi C.205 Veltro & Orione

Macchi C.205 Veltro

Origins & Design

The C.205 Veltro (“Greyhound”) was an evolution of the earlier C.202 Folgore, designed by Mario Castoldi.

It incorporated the powerful Daimler-Benz DB 605 engine, giving it superior speed and agility compared to its predecessors.

Combat Debut

Entering frontline service in mid-1943, the Veltro was deployed by the Regia Aeronautica (Royal Italian Air Force) primarily as a fighter escort for bombers attacking Allied naval forces around Sicily.

Performance in Battle

The aircraft proved formidable in dogfights.

A notable engagement occurred on 2 August 1943, when six C.205s engaged 20 American P-38 and P-40 fighters, downing six and losing only one of their own.

Post-Armistice Split

After Italy’s surrender in September 1943, the fleet of 66 operational C.205s was divided.

37 were handed over to the Allies, while the remainder continued service under the Aeronautica Nazionale Repubblicana (ANR), the air force of Mussolini’s puppet regime in Northern Italy.

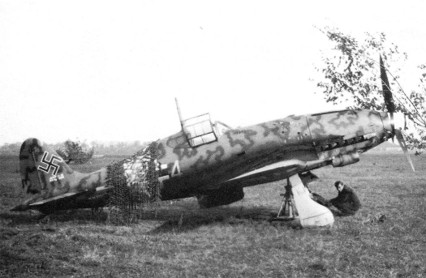

Luftwaffe Use

Some C.205s were also operated by the German Luftwaffe, although in limited numbers.

Production & Legacy

A total of 262–265 units were built before the war’s end.

Despite its excellent performance, the Veltro’s impact was limited by Italy’s industrial constraints and political turmoil.

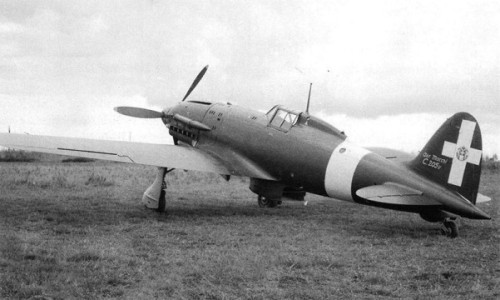

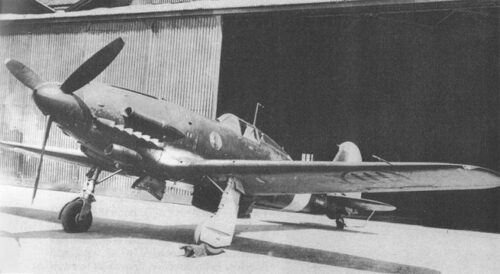

M.C.205 (Prototype)

Purpose

Initial testbed for DB 605 integration into the C.202 airframe.

Armament

Two 12.7 mm Breda-SAFAT machine guns and two 7.7 mm machine guns.

Notes

Served as the foundation for the Veltro series.

Retained the C.202’s wing and fuselage with minimal changes.

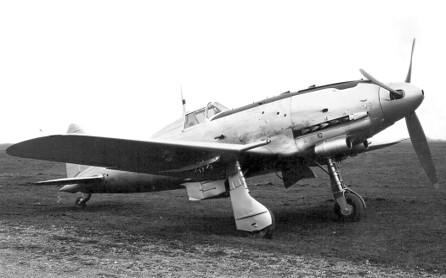

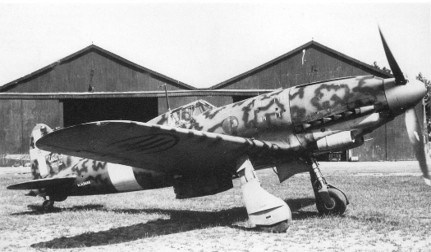

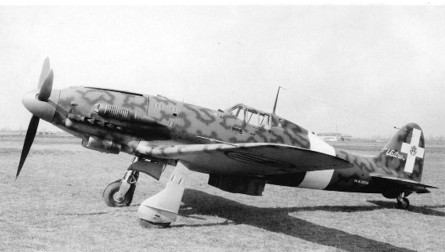

M.C.205V (Veltro – Production Model)

Purpose

Main production version.

Armament

Early batches had two 12.7 mm machine guns; later Serie III aircraft added two 20 mm MG 151 cannons in the wings.

Performance

Max speed 642 km/h; service ceiling 11,000 m; range 950 km.

Operational Use

Saw all combat service in WWII.

Used by Regia Aeronautica, ANR, Luftwaffe, and postwar Italian and Egyptian air forces.

Production

Approx. 262 units were built between 1942 and 1944.

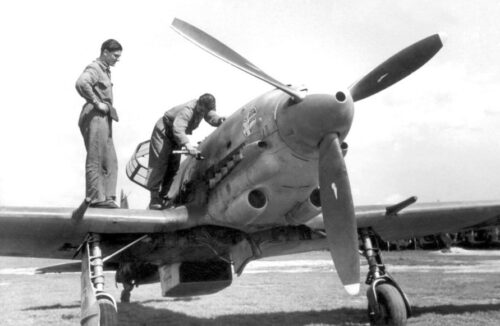

M.C.205S (Long-Range Escort Variant)

Purpose

Extended-range escort fighter.

Modification

Fuselage machine guns were removed to install a 200-litre fuel tank.

Armament

Retained wing-mounted armament only.

Conversion

18 aircraft modified from existing C.205Vs.

Use

Intended for bomber escort missions; limited operational deployment.

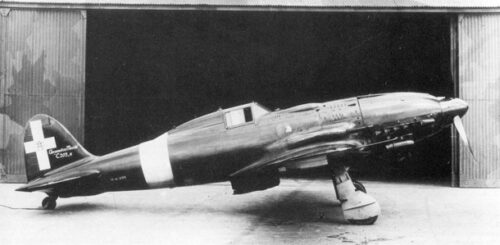

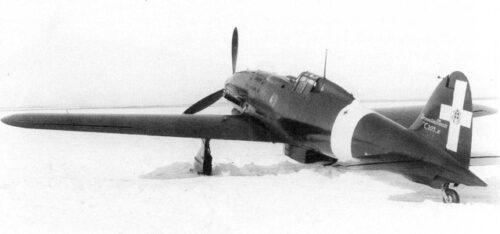

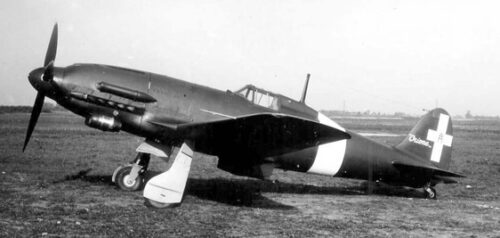

M.C.205N-1 (High-Altitude Interceptor Prototype)

Purpose

Altitude-optimised fighter.

Armament

Four 12.7 mm machine guns in the fuselage;

one 20 mm cannon in the engine.

Design

Retained the heavier N-series airframe.

Outcome

Prototype tested but not selected for production due to handling issues.

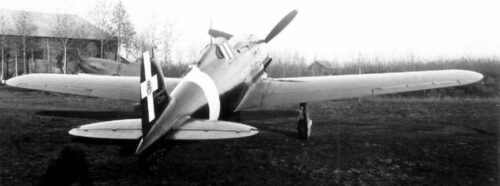

M.C.205N-2 Orione (Advanced Interceptor Prototype)

Purpose

Improved high-altitude interceptor.

Armament

Three 20 mm MG 151 cannons (one engine-mounted, two wing-mounted) and two 12.7 mm machine guns.

Design Enhancements

Streamlined fairings replaced bulky gun blisters to reduce drag.

Performance

Excellent firepower and altitude capability; too late for wartime deployment.

Status

Prototype only.

M.C.205N-2 Orione

Specifications (C.205V)

Crew

1

Length

8.85 m (29 ft 0 in)

Wingspan

10.58 m (34 ft 9 in)

Height

3.04 m (10 ft 0 in)

Wing area

16.8 m² (181 sq ft)

M.C.205 (Prototype)

Airfoil

Root

NACA 23018 (modified)

Tip

NACA 23009 (modified)

Empty weight

2,581 kg (5,690 lbs)

Gross weight

3,408 kg (7,513 lbs)

Max takeoff weight

3,900 kg (8,598 lbs)

Powerplant

1 × Fiat RA.1050 R.C.58 Tifone

V-12 inverted liquid-cooled piston engine,

1,100 kW (1,500 hp)

Propellers

3-bladed constant-speed propeller

M.C.205N-1 (High-Altitude Interceptor Prototype)

Performance

Maximum speed

642 km/h (399 mph, 347 kn) at 7,200 m (23,600 ft)

Cruise speed

400 km/h (250 mph, 220 kn)

Range

950 km (590 mi, 510 nmi)

Service ceiling

11,500 m (37,700 ft)

Time to altitude

3,000 m (9,800 ft) in two minutes and 40 seconds

Wing loading

202.9 kg/m² (41.6 lbs./sq ft)

Armament

Guns

2 × 12.7 mm (.5 in) Breda-SAFAT machine guns, 400 rpg, in the nose

2 × 20 mm MG 151 cannon, 250 rpg, in the wings

Bombs

2 × 160 kg (350 lbs).
