Fiat G.55 Centauro

Fiat G.55 Centauro

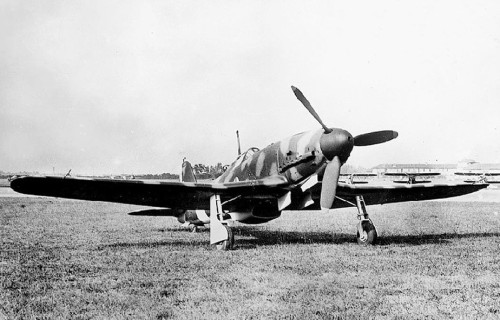

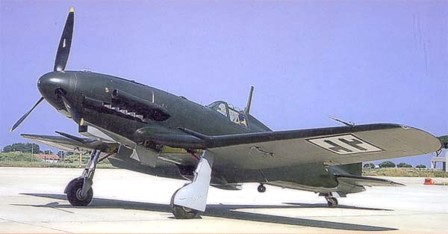

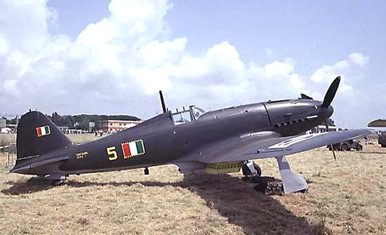

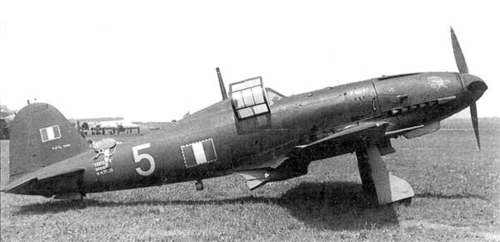

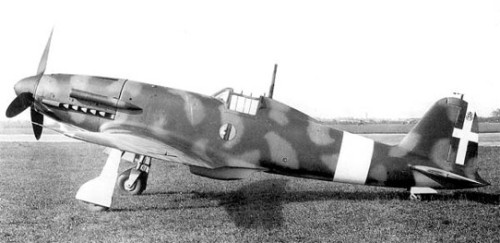

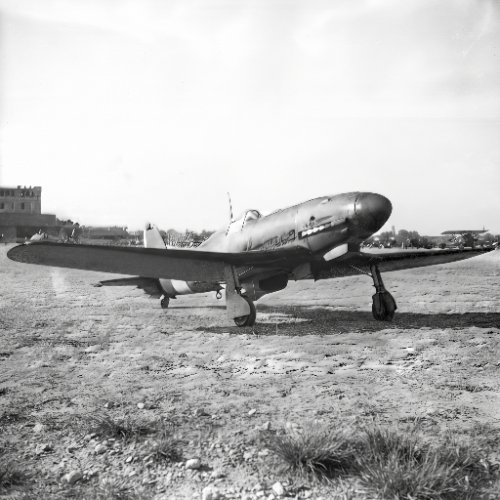

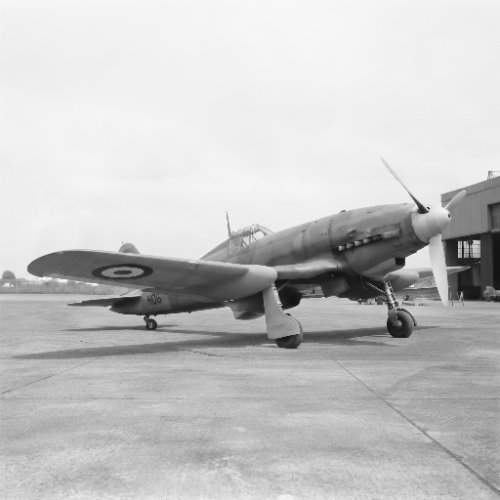

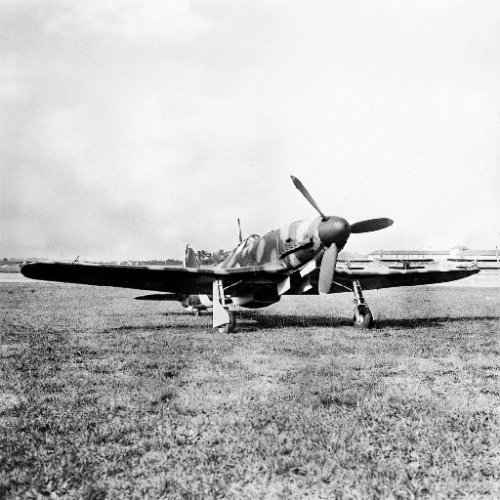

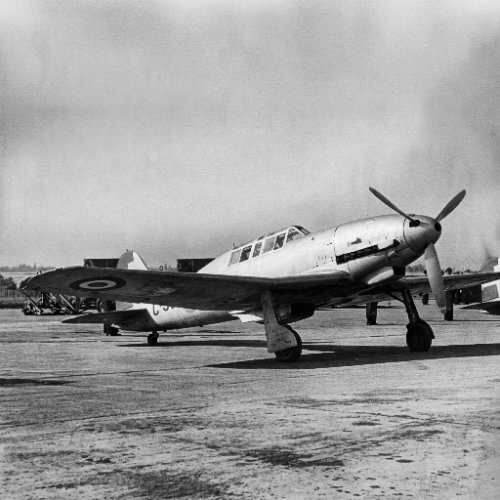

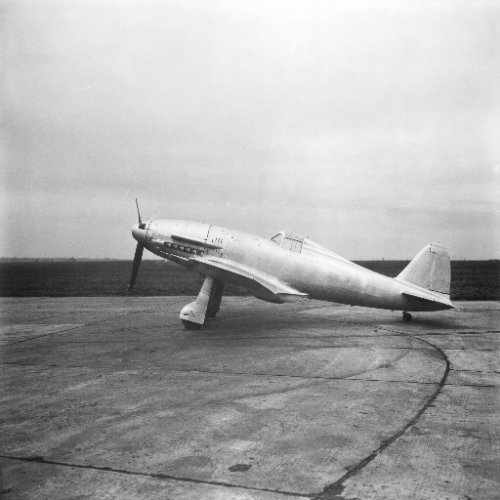

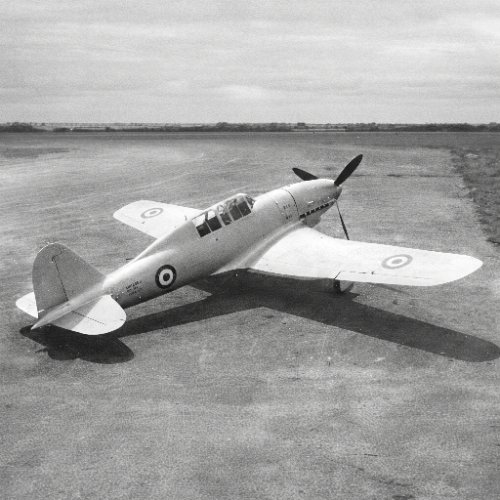

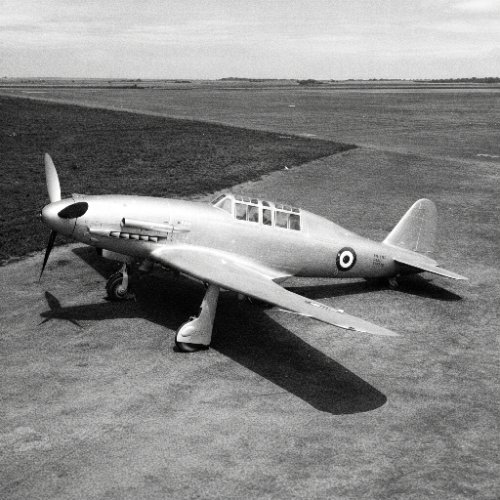

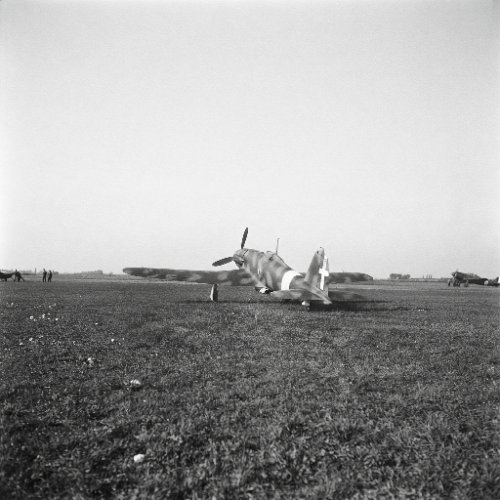

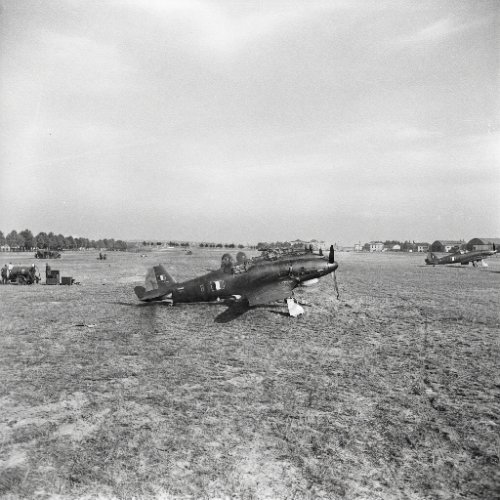

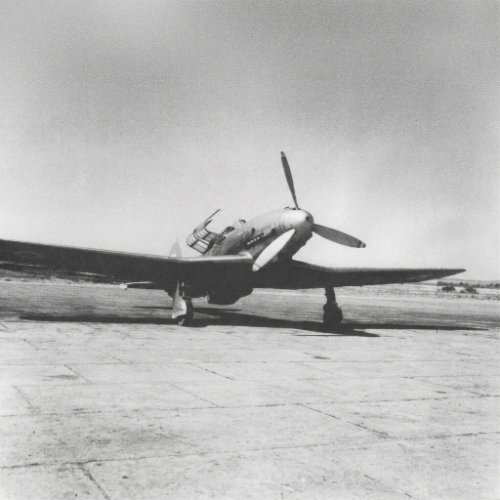

The Fiat G.55 Centauro was Italy’s most advanced wartime fighter, entering service during the final phase of World War II.

Designed by Giuseppe Gabrielli and powered by a licence-built Daimler-Benz DB 605 engine, the G.55 combined aerodynamic refinement with formidable firepower.

Regia Aeronautica Service (1943)

The G.55 first flew on 30 April 1942 and, after successful trials, was selected for production in early 1943.

Initial deliveries went to the Regia Aeronautica, Italy’s Royal Air Force, but only a handful were operational before the Armistice of 8 September 1943.

Production was slow due to Allied bombing and industrial limitations; fewer than 20 units were in frontline service before Italy’s surrender.

Aeronautica Nazionale Repubblicana (ANR) Operations (1943–1945)

After the armistice, the Aeronautica Nazionale Repubblicana (ANR)—the air force of Mussolini’s German-backed Italian Social Republic—became the primary operator.

The ANR received the bulk of wartime G.55s, with approximately 100–120 aircraft delivered between late 1943 and early 1945.

G.55s were deployed primarily in Northern Italy, tasked with defending industrial targets and intercepting Allied bombers.

Combat Performance

The Centauro proved highly effective at high altitudes, often engaging

P-51 Mustangs, P-47 Thunderbolts, P-38 Lightnings, and Spitfires.

Pilots praised its stability, firepower (typically 3 × 20 mm MG 151/20 cannons and 2 × 12.7 mm Breda-SAFAT machine guns), and survivability.

Despite limited numbers, G.55s were involved in several notable air battles over the Po Valley and Turin region.

Limitations and Legacy

Total wartime production reached approximately 274 units, far fewer than Allied or German contemporaries.

The aircraft’s late entry and Italy’s fractured wartime position limited its strategic impact.

Variants

G.55

3 prototypes.

G.55/0

16 pre-production aircraft.

G.55/1

Initial production aircraft.

G.55/2

Bomber interceptor version.

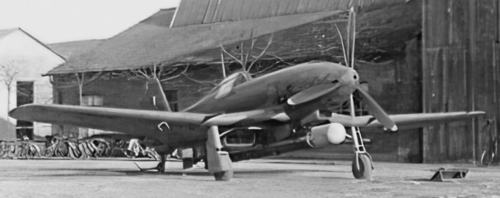

G.55/S

Torpedo attack aircraft variant.

‘S’ for ‘Silurante’, meaning ‘torpedo’.

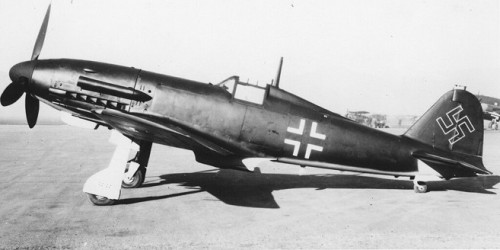

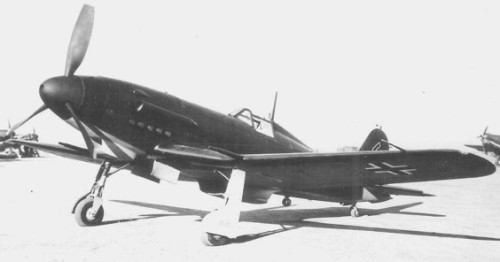

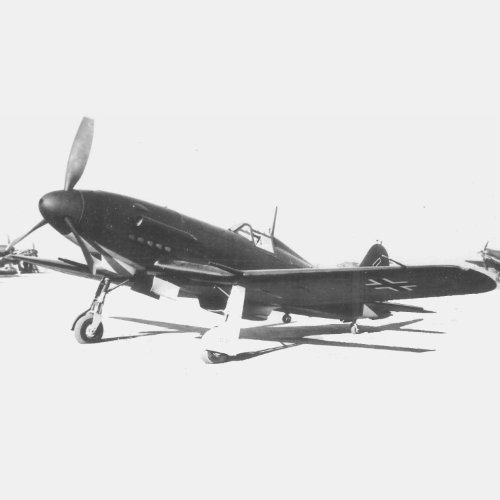

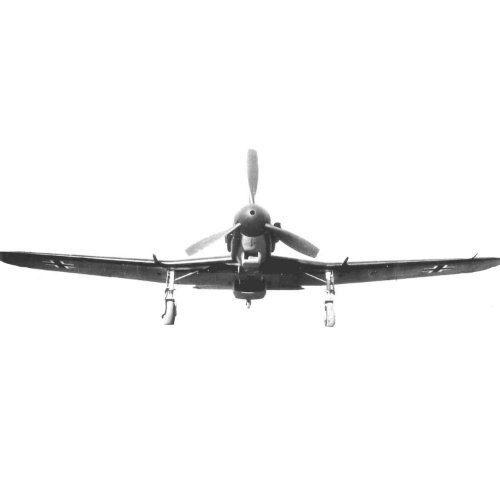

G.56

Origins and Design

In 1943, the Stato Maggiore dell’ Aeronautica requested an upgraded version of the G.55, optimised for performance.

The G.56 retained the airframe of the G.55 but was fitted with the more powerful Daimler-Benz DB 603A engine, delivering 1,750 hp—an increase of 275 hp over the DB 605 used in the G.55.

To compensate for the heavier engine and maintain balance, designers removed the two 12.7 mm Breda-SAFAT machine guns from the nose, leaving a streamlined armament of three 20 mm MG 151/20 cannons.

Performance

Top speed: 685 km/h (426 mph), significantly faster than the G.55’s 630 km/h (391 mph).

Rate of climb and ceiling were also improved, making it the fastest Italian fighter of the war.

Prototypes and Testing

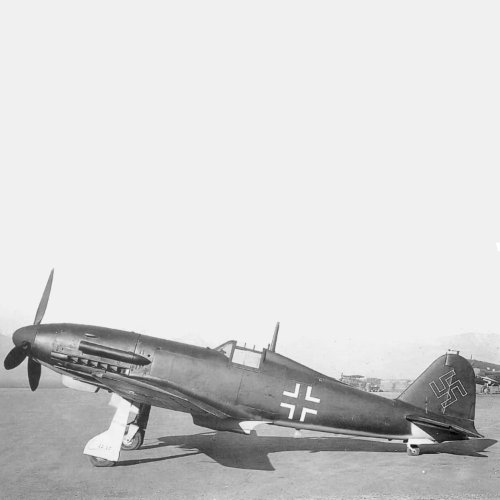

Two prototypes were built: MM.536 and MM.537.

The first flight occurred on 28 March 1944, under German supervision.

Despite its superior performance, German evaluators found no compelling advantage over their own Bf 109G and Fw 190A, and the project was not pursued further.

The second prototype featured a German VDM propeller and was used for weapons testing, including trials with the MK 108 30 mm cannon.

Fate

The G.56 never entered mass production.

With Italy’s armistice and shifting wartime priorities, development ceased by September 1944.

Though only two units were built, the G.56 remains a testament to Italy’s late-war aeronautical ingenuity.

Specifications (G.55/I)

Crew

One

Length

9.37 m (30 ft 9 in)

Wingspan

11.85 m (38 ft 11 in)

Height

3.13 m (10 ft 3 in) excluding radio antenna mast

Wing area

21.11 m² (227.2 sq ft)

Airfoil

Root

NACA 2415

Tip

NACA 2409

Empty weight

2,630 kg (5,798 lb)

Gross weight

3,520 kg (7,760 lb)

Max takeoff weight

3,718 kg (8,197 lb)

Powerplant

1 × Fiat RA.1050 R.C.58 Tifone V-12 inverted liquid-cooled piston engine,

1,085 kW (1,455 hp) (license-built Daimler-Benz DB 605A-1)

Propellers

3-bladed constant-speed propeller

Performance

Maximum speed

623 km/h (387 mph, 336 kn)

Range

1,200 km (750 mi, 650 nmi)

Ferry range

1,650 km (1,030 mi, 890 nmi) with 2 x 100 L (26 US gal; 22 imp gal) drop-tanks

Service ceiling

12,750 m (41,800 ft)

Time to altitude

6,000 m (20,000 ft) in five minutes and 50 seconds

7,000 m (23,000 ft) in eight minutes and 34 seconds

Wing loading

154 kg/m² (32 lb/sq ft)

Power/mass

0.308 kW/kg (0.187 hp/lb)

Armament

G.55 Series 0

1 × 20 mm (0.79 in) Mauser MG 151/20 cannon, engine-mounted (250 rounds)

4 × 12.7 mm (0.5 in) Breda-SAFAT machine guns, two in the upper engine cowling, two in the lower cowling/wing roots (300 rpg)

G.55 Serie I

3 × 20 mm (0.79 in) MG 151/20s, one engine-mounted (250 rounds) and two wing-mounted (200 rpg)

2 × 12.7 mm (0.5 in) Breda-SAFAT machine guns in the upper engine cowling (300 rpg)

Provision for 2 × 160 kg (350 lb) bombs on underwing racks

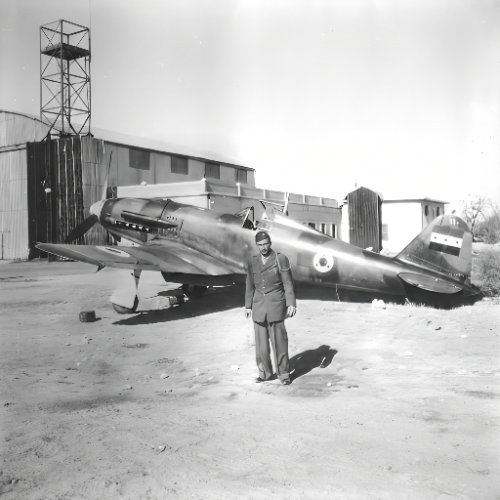

(N.B. Egyptian and Syrian aircraft used machine guns in the wings instead of cannons.)

G.56

3 × 20 mm (0.79 in) MG 151/20s, one engine-mounted (300 rounds) and two wing-mounted (250 rpg).
