The Fiat CR.30 emerged in the early 1930s as part of Italy’s effort to modernise its fighter fleet under the direction of Celestino Rosatelli, Fiat’s chief biplane designer.
It was conceived as a successor to the ageing Fiat CR.20, which by 1930 had fallen behind rapidly advancing aviation standards.
Italian air policy at the time—shaped by figures such as Italo Balbo, Undersecretary of State for Aeronautics—favoured agile, manoeuvrable biplanes for interception and dogfighting, even as monoplanes began appearing elsewhere.
Balbo pressed Fiat to produce a faster, more competitive fighter to maintain Italy’s prestige and readiness.
Work on the CR.30 began around 1930, with the design intended to bridge the gap between older biplanes and more advanced fighters still in development.
Four prototypes were constructed, and the aircraft made its first flight in March 1932.
These prototypes were tested extensively, including participation in international competitions.
At the 1932 Zurich Aeronautical Meet, CR.30 prototypes won speed circuit contests at average speeds of 340 km/h and 330 km/h, demonstrating impressive performance for a biplane and helping secure production orders from the Regia Aeronautica.
Design Characteristics
The CR.30 represented a significant refinement of Rosatelli’s earlier work.

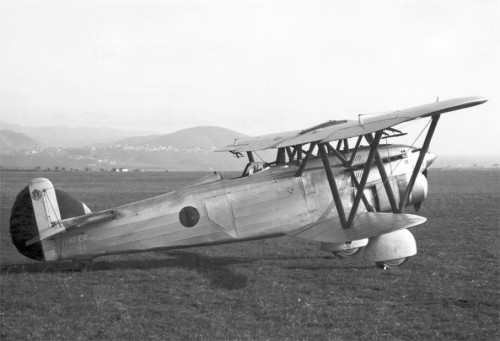

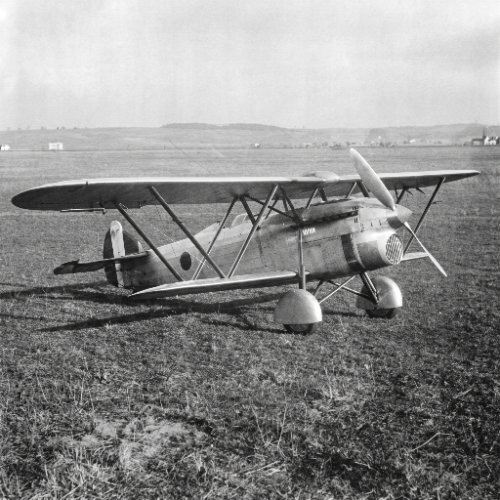

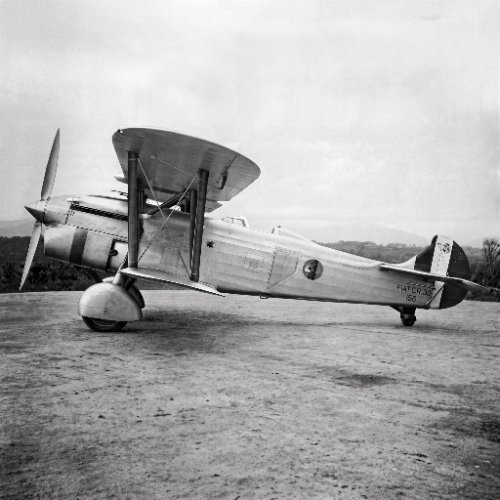

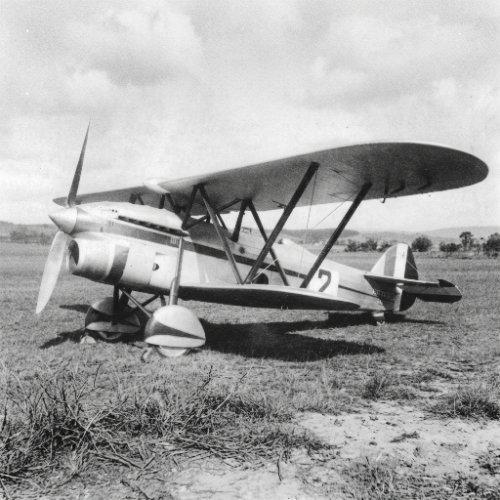

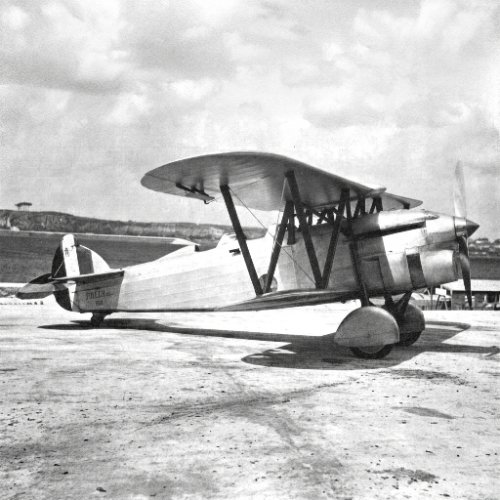

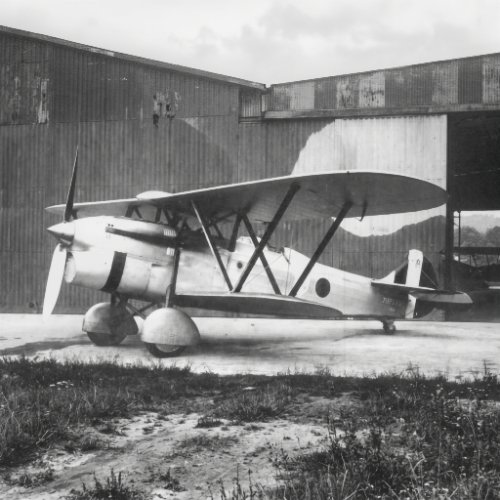

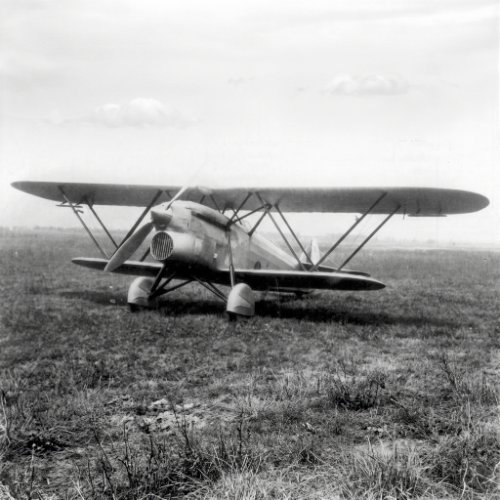

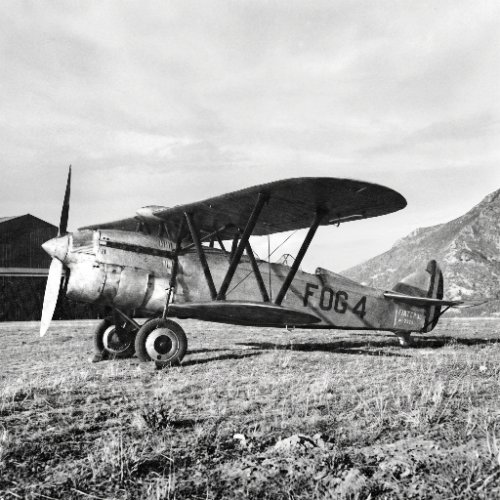

It was a single‑seat biplane with a metal frame and fabric covering, featuring W‑form (Warren-type) interplane struts that improved structural efficiency.
The cockpit was repositioned to enhance pilot visibility, and the wings and tail surfaces were redesigned with more aerodynamic, rounded tips.
The aircraft used a fixed tailwheel landing gear, typical of fighters of the era, and was powered by the Fiat A.30 R.A., a liquid‑cooled 12‑cylinder V‑12 piston engine producing 447 kW (600 hp).
This engine was central to Italy’s fighter modernisation efforts and became a common powerplant across several Rosatelli designs.
Armament consisted of two synchronised forward‑firing Breda‑SAFAT 7.7 mm machine guns, each with a substantial ammunition supply.
Early prototypes reportedly carried heavier 12.7 mm guns, but production standardised on the 7.7 mm calibre.
Performance
The CR.30’s performance placed it among the faster biplanes of its generation.
Key specifications include:
Maximum speed: 351 km/h (218 mph)
Range:850 km (528 mi)
Service ceiling:8,350 m (27,845 ft)
Empty weight:1,345 kg; gross weight: 1,895 kg
Wingspan:10.50 m; Length: 7.88 m
These figures made the CR.30 competitive in speed and climb rate, though by the mid‑1930s monoplanes were beginning to surpass biplanes in overall performance.
Production and Operational Service
Production of the CR.30 began in 1933, with deliveries to the Regia Aeronautica starting in 1934.
Total production is estimated between 124 and 176 aircraft, reflecting some uncertainty in historical records.
The aircraft served primarily with the Regia Aeronautica, notably with the 2° Stormo in Libya from 1935 until its withdrawal from front‑line service in 1938.
Its operational role was largely transitional: it provided improved speed and handling compared to earlier Fiat fighters but was soon overshadowed by the more advanced Fiat CR.32, which inherited many of its design principles and went on to achieve fame in the Spanish Civil War.
International Operators
The CR.30 saw modest export success.
Operators included:
Austria:Three CR.30 and three CR.30B aircraft.
Hungary:The largest foreign user; operated multiple CR.30 and CR.30B aircraft from 1936 – 1938.
China:Chinese Nationalist Air Force.
Paraguay:Two aircraft used as advanced trainers from 1939.
Spain: The Nationalist Air Force operated two aircraft from 1938.
Venezuela:One aircraft delivered in 1938.
Germany: The Luftwaffe operated captured Austrian aircraft.
These exports reflected Italy’s broader strategy of promoting its aviation industry internationally during the interwar period.
Variants
The CR.30 family included several notable variants:
CR.30:Standard single‑seat fighter production model.

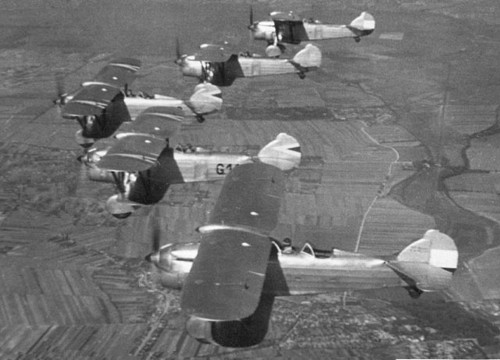

CR.30B:Two‑seat trainer and liaison aircraft.
Many single‑seat aircraft were later converted to this configuration, and CANSA produced 20 new‑build CR.30B units.

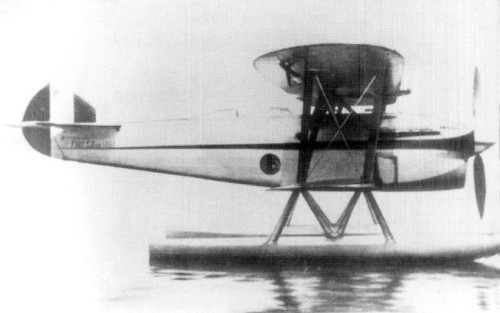

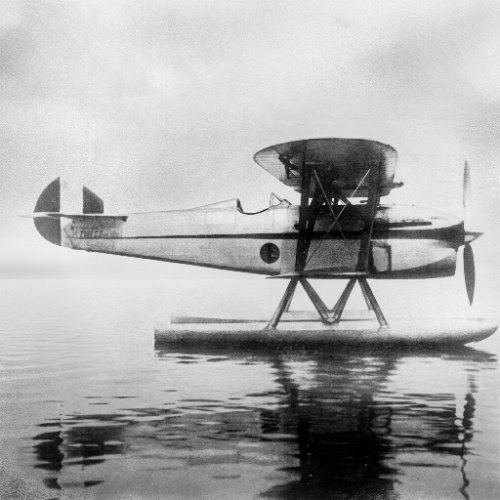

CR.30 Idro:A twin‑float seaplane version; two prototypes were converted, capable of carrying small anti‑personnel bomb loads (up to 24 kg).
These variants extended the aircraft’s utility beyond frontline fighter roles, especially as newer designs replaced it.
Role and Relevance in the WWII Era
By the outbreak of World War II, the CR.30 was already obsolete as a frontline fighter.
Italy had transitioned to more modern aircraft, including the CR.32, CR.42, and emerging monoplane fighters.
The CR.30’s role during WWII was therefore minimal, limited mainly to training, liaison duties, and service with smaller foreign air forces that had acquired the type before the war.
Its significance lies not in wartime combat but in its place as a transitional design that shaped the evolution of Italian fighter development.
The CR.30’s structural and aerodynamic innovations directly influenced the Fiat CR.32, which became one of the most successful biplane fighters of the 1930s.
In this sense, the CR.30 served as a crucial stepping stone in Rosatelli’s design lineage, bridging older interwar concepts with more refined pre‑WWII fighters.
