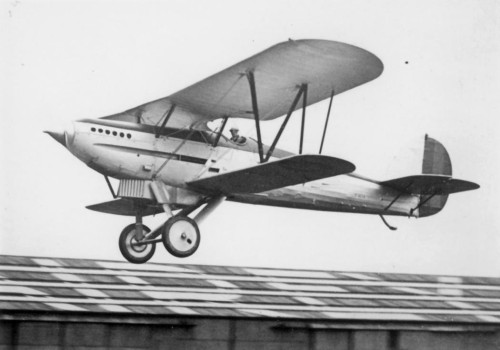

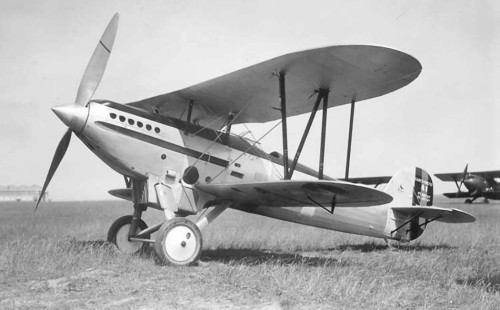

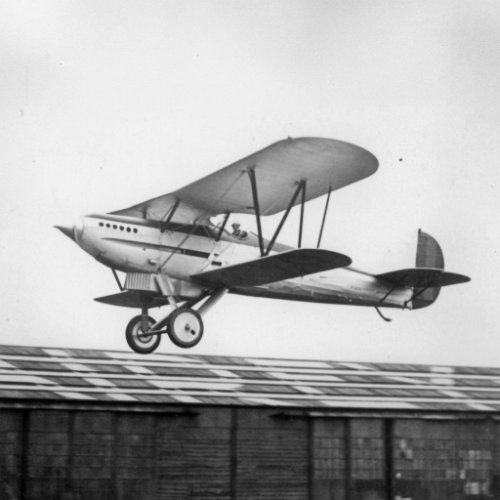

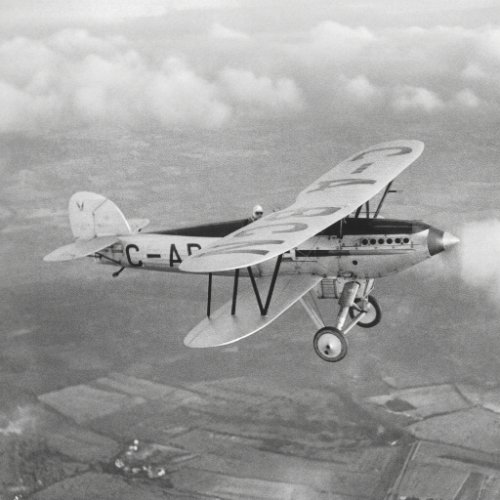

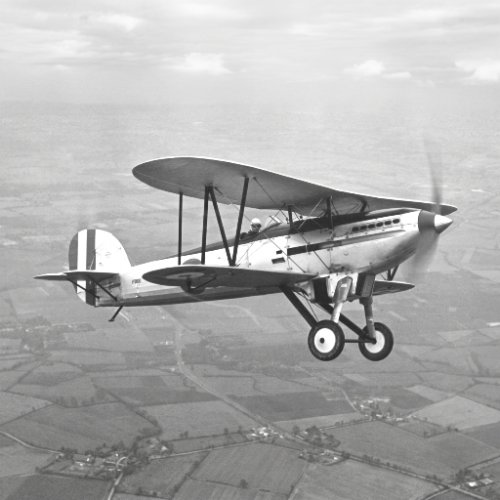

Fairey Firefly IIM

Fairey Firefly IIM

The Fairey Firefly IIM had a limited but notable operational history during World War II, primarily in Belgian service

Belgian Air Force Deployment

Primary Operator

Belgium’s Aviation Militaire was the main user of the Firefly IIM, having acquired 25 aircraft directly from Fairey in the UK, followed by 62 more built under licence by Avions Fairey in Belgium.

Role

These aircraft served as frontline fighters throughout the 1930s.

By the time WWII began, they were largely obsolete but still in service due to limited modernisation options.

Combat Use in WWII

May–June 1940

During the German invasion of Belgium, Firefly IIMs were briefly deployed in combat.

Their performance was limited against modern Luftwaffe aircraft, and they were quickly overwhelmed.

Tactical Role

Used primarily for local air defence and reconnaissance, though their biplane configuration and older engines made them vulnerable.

Other Notable Mentions

Soviet Union

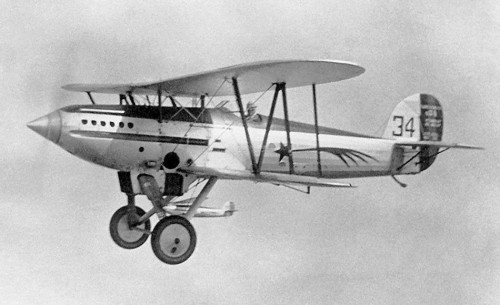

One aircraft was supplied to the USSR for evaluation, but no further use was recorded.

Variants

Two Belgian Firefly IIMs were converted to the Firefly IV with upgraded Hispano-Suiza engines, but the performance gains were insufficient to justify further development.

Specifications

Crew

1

Length

24 ft 8 in (7.52 m)

Wingspan

31 ft 6 in (9.60 m)

Height

9 ft 4 in (2.84 m)

Wing area

236.8 sq ft (22.00 m²)

Empty weight

2,387 lb (1,083 kg) equipped

Gross weight

3,285 lb (1,490 kg)

Max take-off weight

3,404 lb (1,544 kg)

Powerplant

1 × Rolls-Royce F.XIS V-12 liquid-cooled piston engine,

480 hp (360 kW)

Propellers

2-bladed fixed-pitch propeller

Performance

Maximum speed

175 mph (282 km/h, 152 kn) at sea level,

223 mph (194 kn; 359 km/h) at 13,125 ft (4,000 m)

Range

240 mi (390 km, 210 nmi)

Service ceiling

30,800 ft (9,400 m)

Time to altitude

10 minutes 55 seconds to 20,000 ft (6,000 m)

Armament

Guns

2 × 0.303 in (7.7 mm) Vickers machine guns.
