Curtiss SC Seahawk


The Curtiss SC Seahawk was a scout seaplane designed for the United States Navy during World War II.

The existing Curtiss SO3C Seamew and Vought OS2U Kingfisher were gradually replaced by the Seahawk in the late stages of the war and into peacetime.

Work began in June 1942, following a US Navy Bureau of Aeronautics request for observation seaplane proposals.

Curtiss submitted the Seahawk design on 1 August 1942, with a contract for two prototypes and five service test aircraft awarded on 25 August.

A production order for 500 SC-1s followed in June 1943, prior to the first flight of the prototypes.

While only intended to seat the pilot, a bunk was provided in the aft fuselage for rescue or personnel transfer.

Two 0.5 in (12.7 mm) M2 Browning machine guns were fitted in the wings, and two underwing hardpoints allowed carriage of 250 lb (113 kg) bombs or, on the right wing, surface-scan radar.

The wings were foldable.

The main float, designed to incorporate a bomb bay, suffered substantial leaks when used in that fashion, and was modified to carry an auxiliary fuel tank.

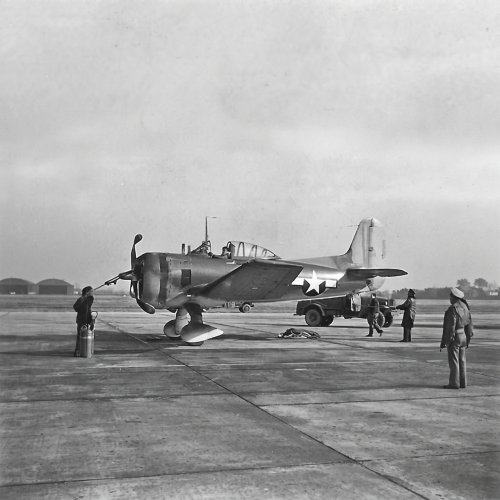

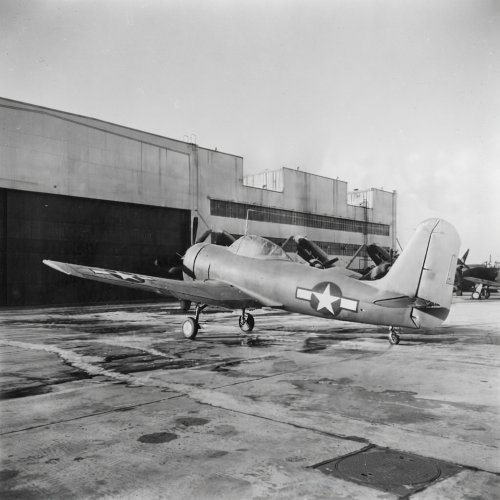

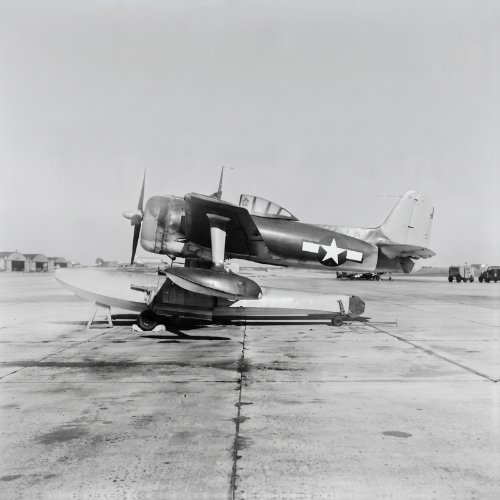

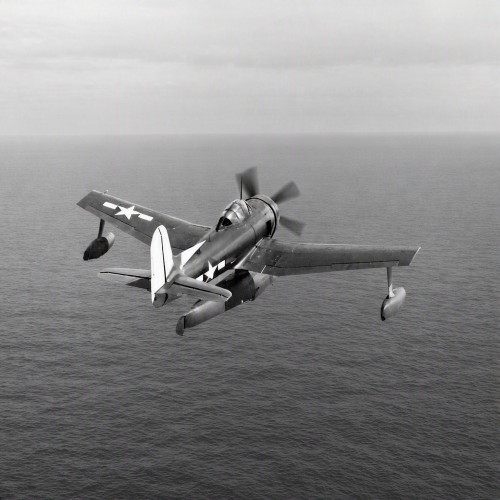

The first flight of a prototype XSC-1 took place 16 February 1944 at the Columbus, Ohio Curtiss plant.

Flight testing continued through 28 April, when the last of the 7-pre-production aircraft took to the air.

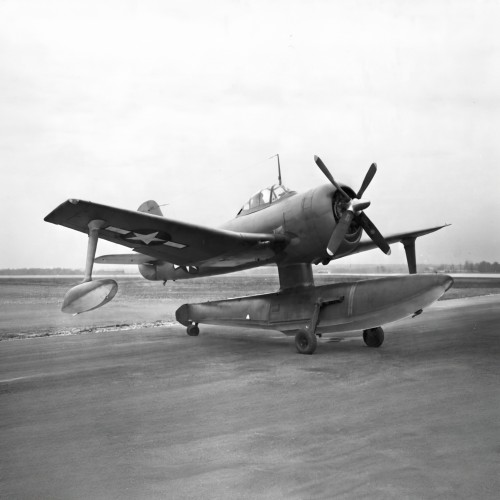

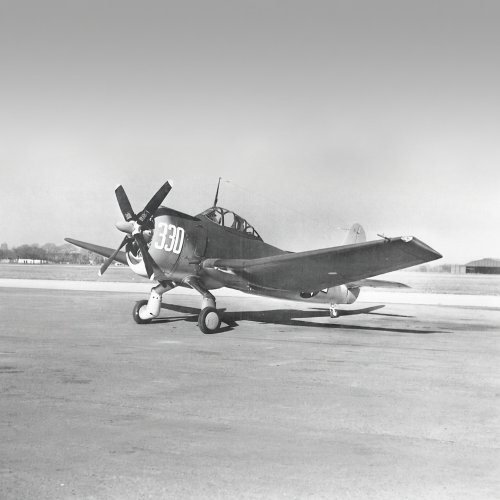

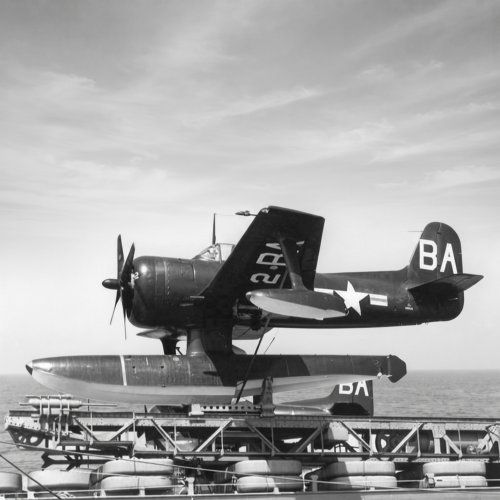

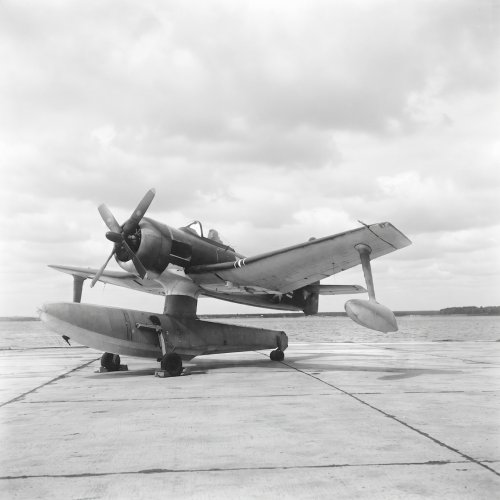

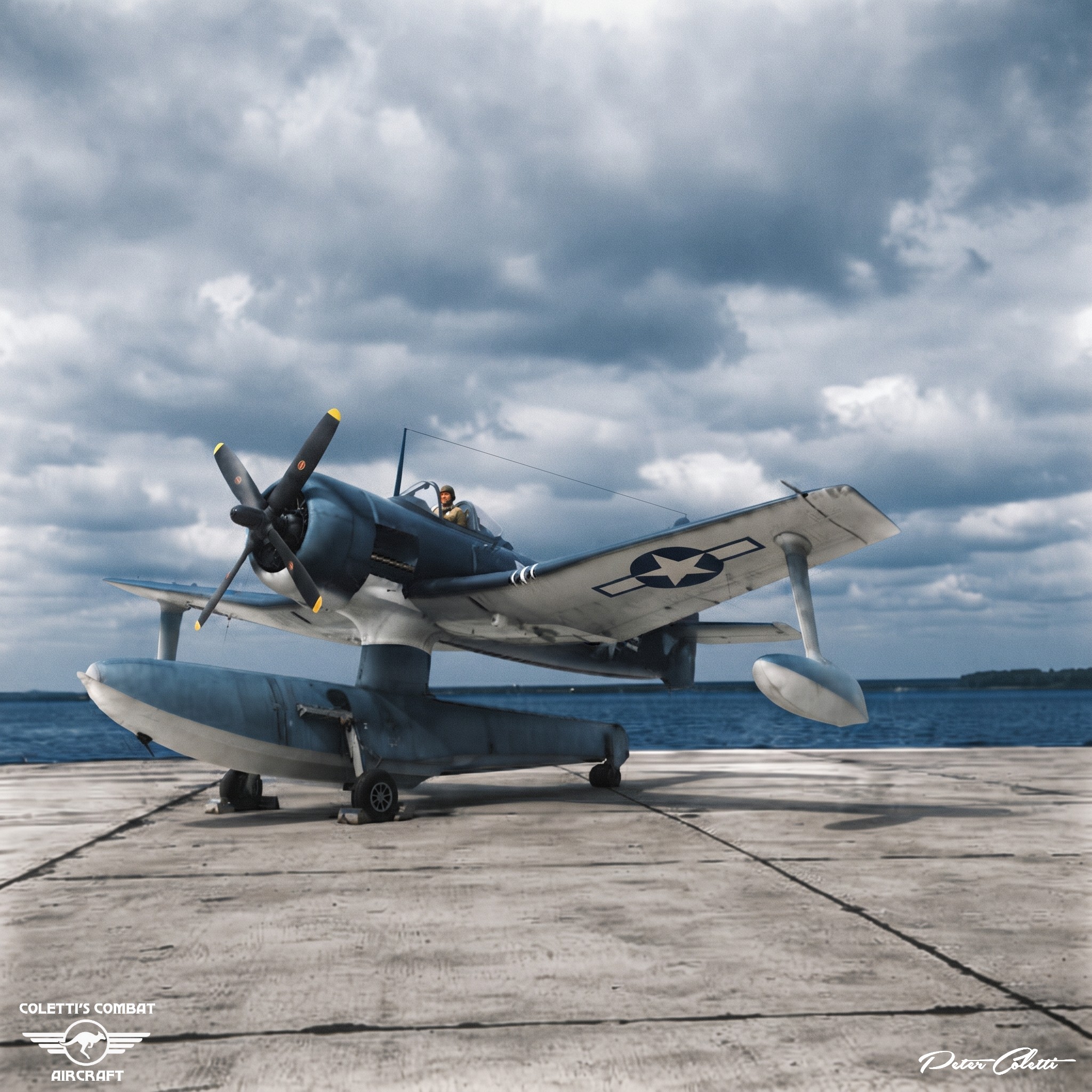

Nine further prototypes were later built, with a second seat and modified cockpit, under the designation SC-2; series production was not undertaken.

 The first serial production Seahawks were delivered on 22 October 1944, to USS Guam.

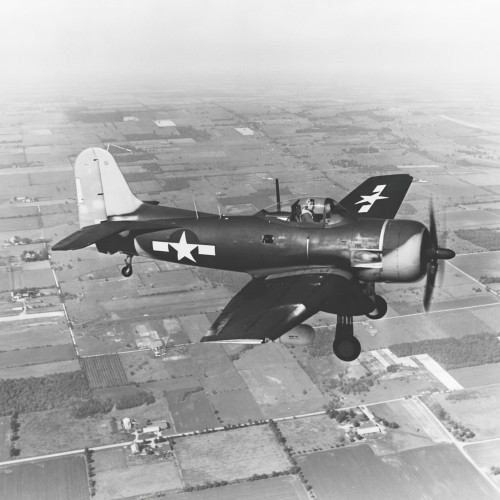

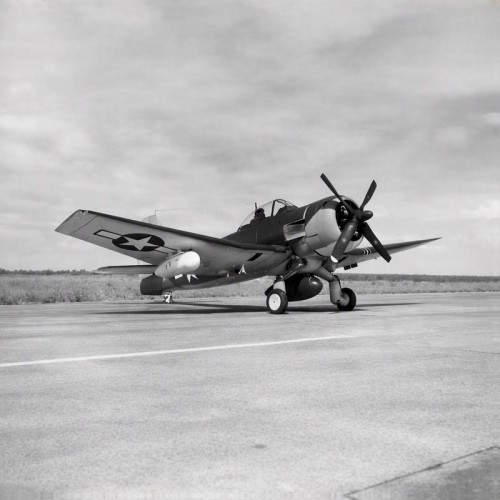

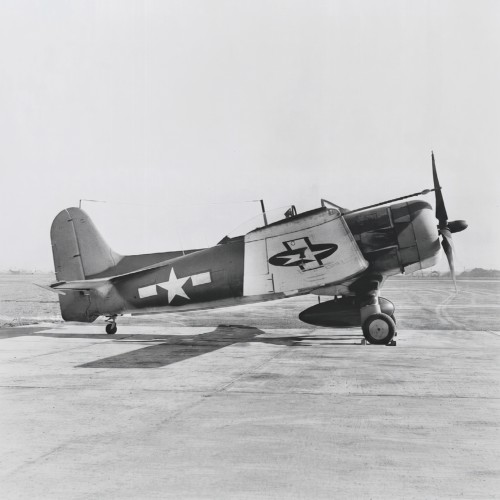

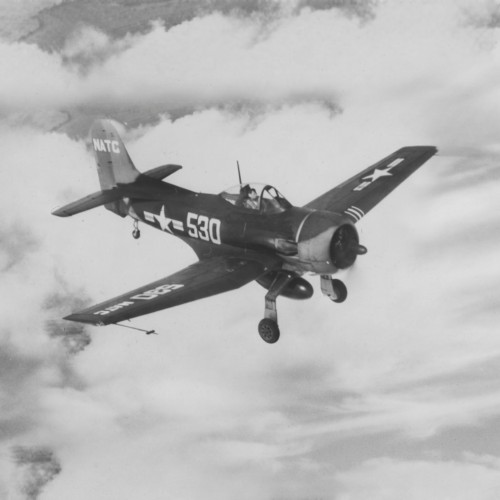

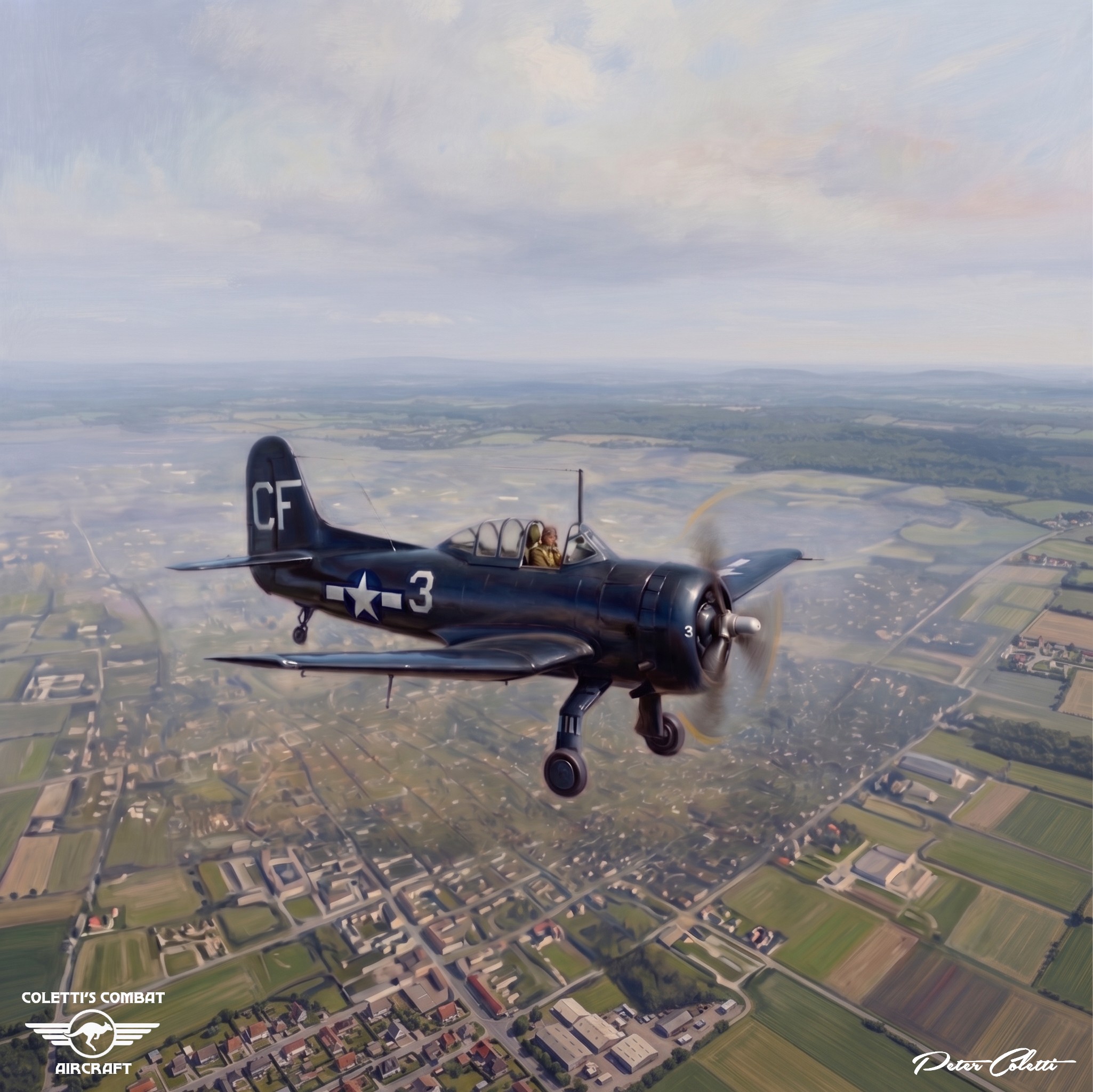

All 577 aircraft eventually produced for the Navy were delivered on conventional landing gear and flown to the appropriate Naval Air Station, where floats were fitted for service as needed.

Capable of being fitted with either float or wheeled landing gear, the Seahawk was arguably America’s best floatplane scout of World War II.

However, its protracted development time meant it entered service too late to see significant action in the war.

It was not until June 1945, during the pre-invasion bombardment of Borneo, that the Seahawk was involved in military action.

By the end of the war, seaplanes were becoming less desirable, with the Seahawk being replaced soon afterward by helicopters.

Tri-colour camouflage and markings on the Seahawk were in accordance with US Navy regulations from 1944, 1945, and later postwar regulations.






SC-1 float-equipped.




Facility for single stretcher patient


36 ft 4.5 in (11.087 m)


41 ft 0 in (12.50 m)


16 ft 0 in (4.88 m) on beaching gear

Wing area

280 sq ft (26 m2)



NACA 23017


NACA 23010

Empty weight

6,320 lb (2,867 kg)

Gross weight

9,000 lb (4,082 kg)


1 × Wright R-1820-62 Cyclone 9-cylinder air-cooled radial piston engine,

1,350 hp (1,010 kW)


4-bladed constant-speed propeller


Maximum speed

313 mph (504 km/h, 272 kn) at 28,600 ft (8,700 m)

Cruise speed

125 mph (201 km/h, 109 kn)


625 mi (1,006 km, 543 nmi)

Service ceiling

37,300 ft (11,400 m)

Rate of climb

2,500 ft/min (13 m/s)



2 × .50 in (12.70 mm) M2 Browning machine guns


2 × 325 lb (147 kg) bombs under wings.
