The Curtiss SBC Helldiver was the last combat biplane ordered by the United States Navy, sitting at the hinge point between the classic biplane era and the modern monoplane dive bomber.
Its story begins in the early 1930s, when the Navy was still unsure how fast it could safely move to monoplanes for carrier operations.
In 1931, the Navy issued a requirement for a high‑performance two‑seat fighter and scout aircraft.
Several companies responded, and Curtiss was asked to develop a more advanced design that experimented with newer ideas: a parasol monoplane wing, retractable landing gear, and more powerful radial engines.
This initial effort would eventually evolve—through failure—into the SBC Helldiver.

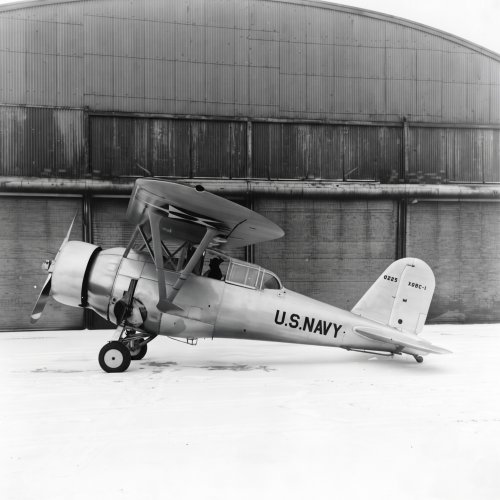

XF12C-1 Helldiver
The Monoplane Prototype.
The XF12C and Its Problems:
Curtiss’s first attempt was the XF12C‑1 (company Model 73), a parasol‑wing monoplane with a two‑seat layout.
It used a Wright R‑1510 radial engine at first, later swapped for other engines as performance and reliability issues appeared.
The aircraft featured:
A parasol wing mounted above the fuselage
Retractable main landing gear
Tandem cockpits for pilot and observer/gunner
The Navy reclassified the aircraft several times as its intended role shifted—from fighter to scout to scout‑bomber—under designations like XS4C‑1 and XSBC‑1.
The crucial turning point came during dive‑bombing trials in 1934: the parasol wing structure failed under the high‑G loads of steep dives.
That failure convinced both Curtiss and the Navy that this particular monoplane configuration was not robust enough for dive‑bombing.
Rather than abandon the project, Curtiss went back to a more conservative layout: a biplane, but with modern features like retractable landing gear and enclosed cockpits.
Birth of the Biplane Helldiver
XSBC‑2: First Biplane Prototype
Curtiss redesigned the aircraft as the Model 77, designated XSBC‑2 by the Navy.
It was an all‑metal biplane with fabric‑covered flying surfaces and a more conventional structural arrangement.
Key features included:
Two‑bay biplane wing structure with “I”-type interplane struts
Enclosed tandem cockpits under a sliding canopy
Retractable main landing gear and tailwheel
A Wright R‑1510‑12 radial engine
The XSBC‑2 first flew in December 1935.
It demonstrated that a biplane could still meet the Navy’s needs for a scout‑bomber while handling the stresses of dive‑bombing more safely than the earlier monoplane.
XSBC‑3 and Production Decision
Curtiss refined the design further into the XSBC‑3 (Model 77A), replacing the engine with a Pratt & Whitney R‑1535‑82 Twin Wasp Junior.
This version offered better performance and reliability.
Flight tests in 1936 satisfied the Navy enough to place a production order.
In August 1936, the Navy ordered 83 aircraft under the designation SBC‑3 Helldiver.
Deliveries began in mid‑1937, and the type entered service with fleet squadrons aboard carriers such as the USS Yorktown.
Design and Construction
Airframe
The SBC Helldiver was a compact, robust biplane:
Fuselage: All‑metal semi‑monocoque construction
Wings: Metal structure with fabric covering, arranged in a staggered biplane configuration
Control surfaces: Fabric‑covered rudder, elevators, and ailerons
Interplane struts: Distinctive “I” shaped struts between upper and lower wings
The aircraft was designed to withstand the high loads of dive‑bombing, with reinforced wing and fuselage structures compared to earlier Curtiss designs.

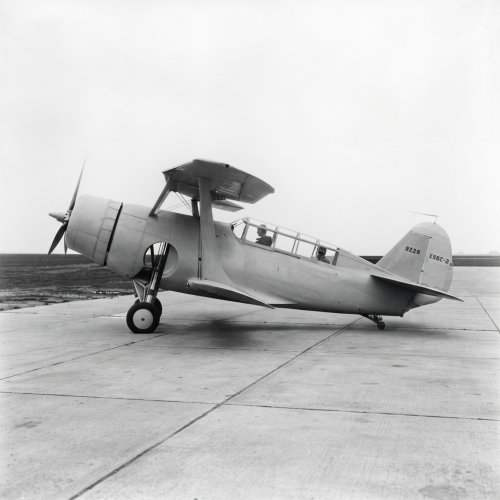

XSBC-1 Helldiver
Cockpit and Crew
The SBC carried a crew of two:
Pilot in the forward cockpit
Radio operator/gunner in the rear cockpit
Both cockpits were enclosed under a sliding canopy.
Behind the rear cockpit, a section of the fuselage decking could be folded down to give the gunner a better field of fire for the rear‑mounted machine gun.

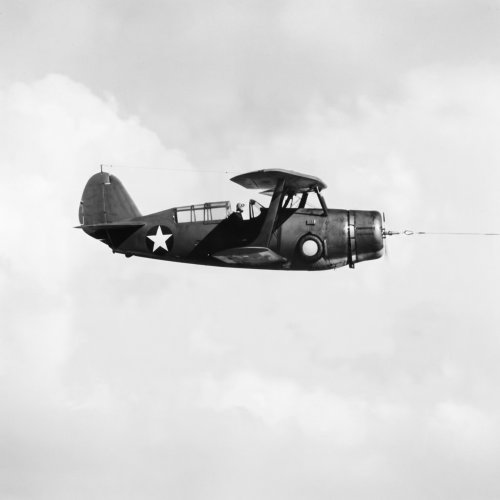

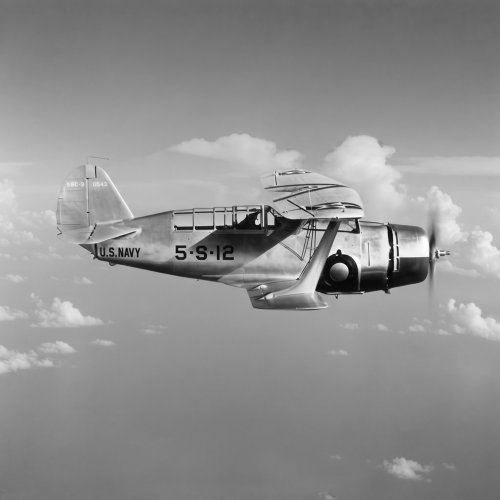

SBC-3 Helldiver
Landing Gear
One of the modern features of the SBC was its retractable landing gear:
Main gear retracted into wells in the lower fuselage ahead of the wings
The tailwheel was also retractable.
This reduced drag compared to fixed‑gear biplanes and contributed to the aircraft’s relatively high speed for its configuration.

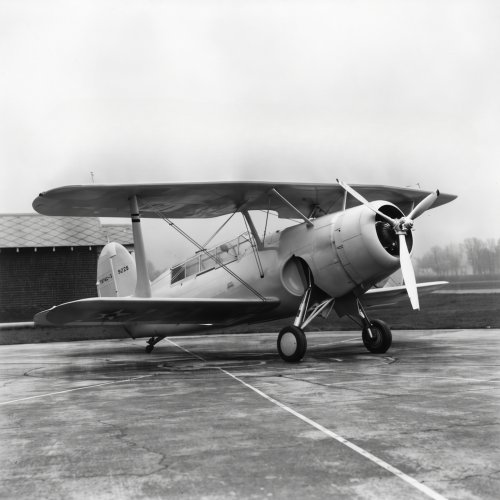

XSBC-3 Helldiver
Powerplants and Performance
Engines by Variant
The SBC series used different engines across its development:
XSBC‑2: Wright R‑1510‑12 radial
XSBC‑3 / SBC‑3: Pratt & Whitney R‑1535‑82 Twin Wasp Junior
The SBC‑4, the final production variant, is the best‑documented in terms of performance figures.

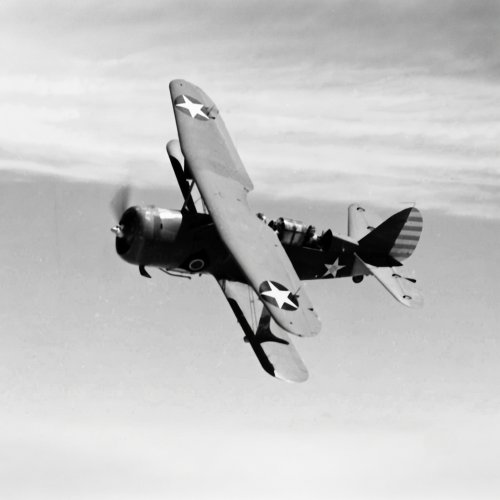

SBC-4 Helldiver
SBC‑4 Performance
Typical performance data for the SBC‑4:
Maximum speed: about 234 mph (around 377 km/h)
Cruise speed: about 175 mph (around 282 km/h)
Service ceiling: roughly 24,000 ft (about 7,300 m)
Range: around 400–405 miles (about 650 km) with a typical load
Empty weight: roughly 4,550 lb (about 2,065 kg)
Maximum take-off weight: around 7,000 lb (about 3,200 kg)
Wingspan: about 34 ft (10.4 m)
Length: about 28 ft (8.6 m)
Wing area: roughly 29–30 square metres
For a biplane, these figures were respectable, but by the late 1930s monoplanes were already surpassing them in speed, range, and payload.
SBC-4 Helldiver
Armament and Role
The SBC Helldiver was designed as a scout‑bomber:
Fixed armament: typically, two forward‑firing machine guns (calibre around 7.62 mm or .30 in)
Defensive armament: one flexible machine gun in the rear cockpit
Bomb load: usually one 500 lb (227 kg) bomb carried under the fuselage, with provision for smaller bombs under the wings in some configurations
Its primary roles were:
Scouting ahead of the fleet
Dive‑bombing attacks on surface targets
Limited air defence and escort duties
The combination of a two‑seat crew, reconnaissance capability, and dive‑bombing made it a transitional type between earlier scout planes and the dedicated dive bombers that followed.
Production Variants

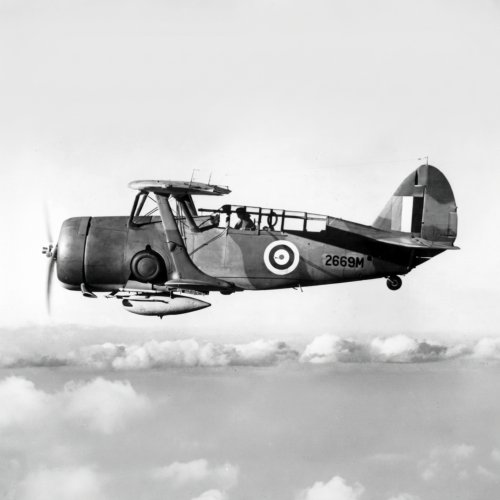

Cleveland Mk.I
SBC‑3
The SBC‑3 was the first production version:
Engine: Pratt & Whitney R‑1535‑82
About 83 aircraft built
Entered service from 1937 onward
Operated from carriers such as the USS Yorktown in scout‑bomber squadrons

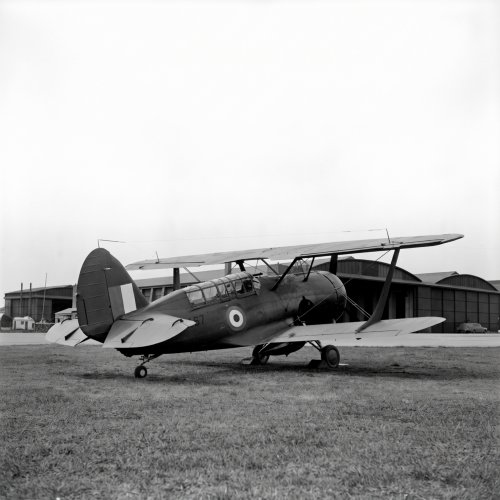

SBC-4 Helldiver

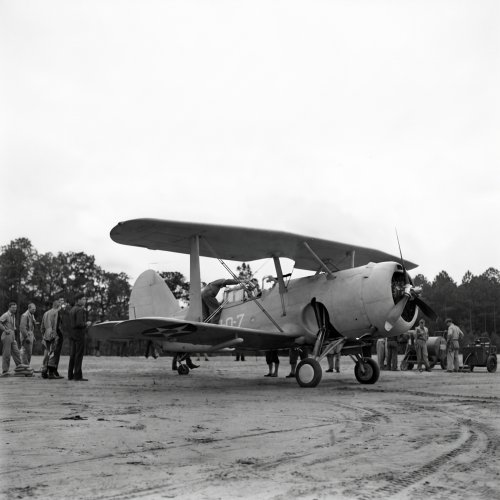

SBC‑4
The SBC‑4 was the improved and final production variant:
Engine: Wright R‑1820‑series radial, providing more power
Around 174 aircraft built
Deliveries began in 1939.
Served aboard carriers and with marine units
In total, roughly 250–260 SBCs of all variants were produced.

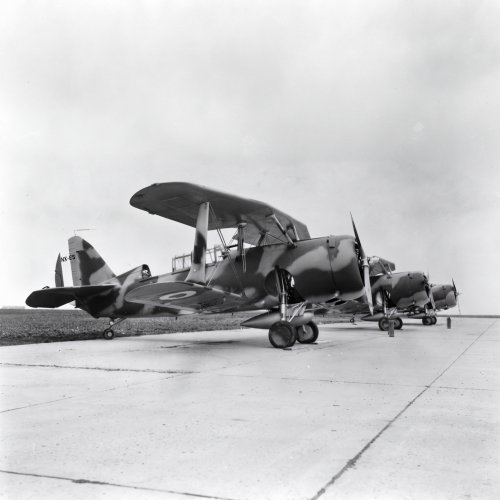

SBC-4 Helldiver
Operational History and World War II Context
Pre‑War Service
In the late 1930s, SBC‑3 and SBC‑4 Helldivers equipped several Navy and Marine squadrons:
Scout‑bomber units on carriers such as the USS Yorktown and the later USS Hornet
Marine observation squadrons for coastal and fleet support
At this stage, the SBC was a frontline type, but its biplane configuration was already behind the curve compared to emerging monoplanes.
SBC-4 Helldiver

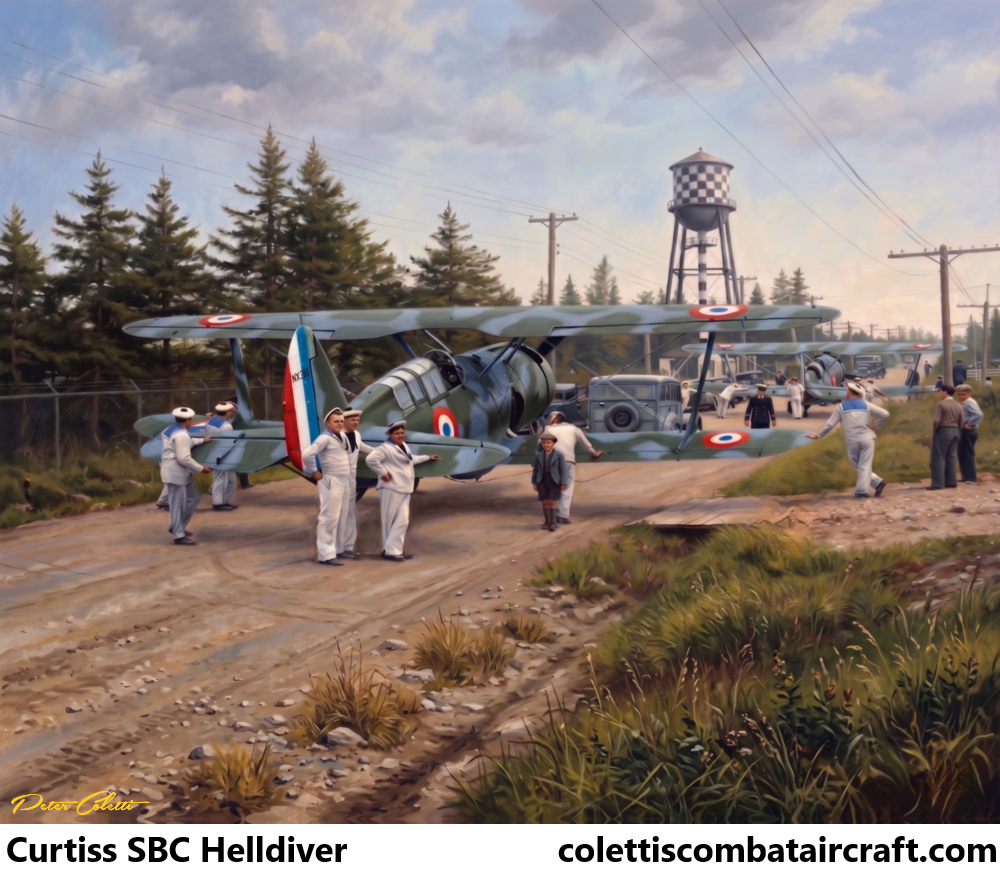

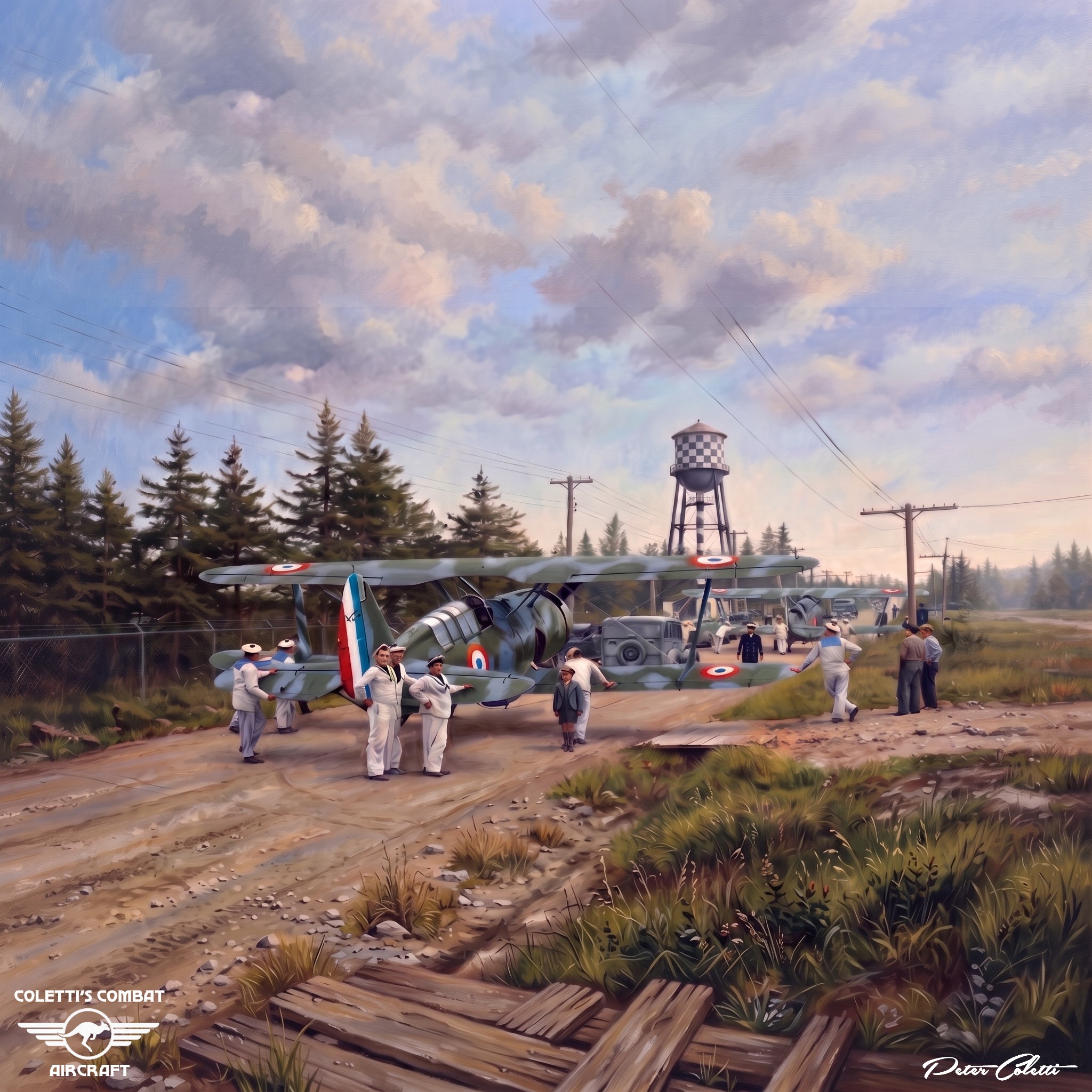

Export to France and Use by the RAF

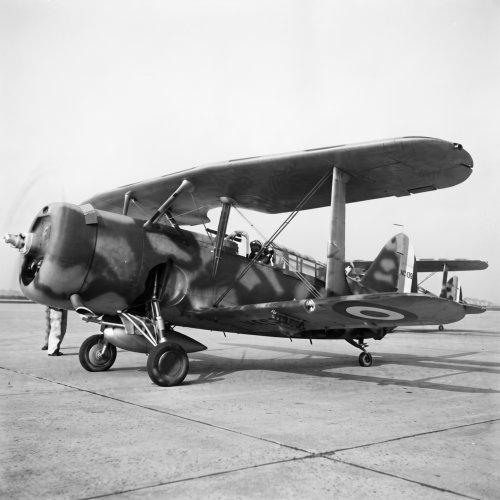

As war loomed in Europe, some SBC‑4 aircraft originally destined for the U.S. Navy were diverted to France:
Around 50 SBC‑4s were delivered to the French.
They arrived too late to see meaningful combat before France’s defeat in 1940.

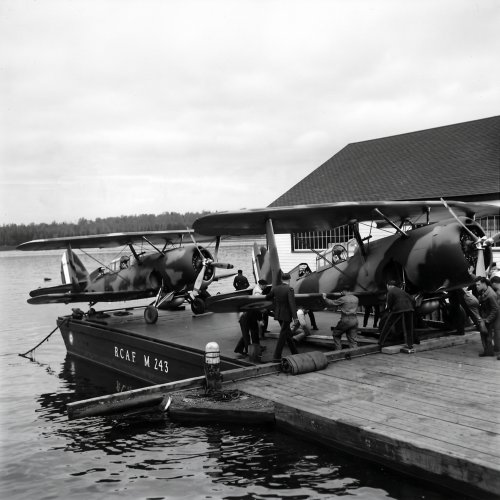

After France fell, a handful of surviving aircraft were taken over by the British:
The Royal Air Force used a small number as ground‑based trainers.
In British service they were sometimes referred to by the name “Cleveland”, though they were never frontline combat types.
Status at U.S. Entry into WWII
By December 1941, when the United States entered World War II, the SBC Helldiver was already considered obsolete:
Some SBC‑4s still served aboard the USS Hornet and with Marine units.
Most SBC‑3s had been relegated to training and secondary duties.
Frontline carrier air groups were transitioning to more capable monoplanes:
Douglas SBD Dauntless became the primary Navy dive bomber.
Later, the Curtiss SB2C Helldiver (a completely different, monoplane aircraft) replaced the SBD.
The SBC biplane Helldiver was gradually withdrawn from service and scrapped by around 1943.
No complete examples are known to have survived.
The reuse of the “Helldiver” name can be confusing, but in historical and technical terms they represent different generations of design and performance.

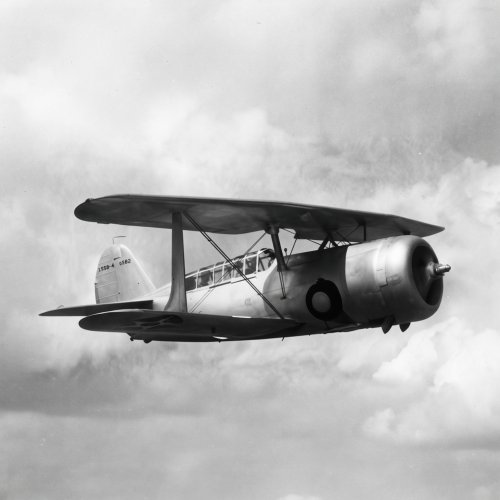

XSBC-4 Helldiver
Significance in Aviation History
The Curtiss SBC Helldiver occupies a narrow but important niche in aviation history:
It was the last combat biplane ordered by the U.S. Navy, marking the end of an era.
It embodied a transitional mindset: a conservative biplane layout combined with modern features like retractable gear and enclosed cockpits.
Its short frontline career reflects how quickly technology moved in the late 1930s; what was acceptable in 1937 was outdated by 1941.
It served as a stepping stone between experimental parasol monoplanes and the fully mature monoplane dive bombers that dominated World War II carrier warfare.
