Caproni Vizzola’s F‑series began in the late 1930s with the F.4 and F.5, compact monoplane fighters that reflected Italy’s push to modernise its fighter fleet.
The F.4 used a liquid‑cooled inline engine, while the F.5 adopted an air‑cooled radial, both built around a relatively light airframe and armed with twin 12.7 mm Breda‑SAFAT machine guns.
The F.4 remained a single prototype; the F.5 reached a small pre-series run and saw limited service as a night fighter.
These experiences convinced Caproni that the basic airframe had potential but needed more power and heavier armament to compete with contemporary Allied and German designs.

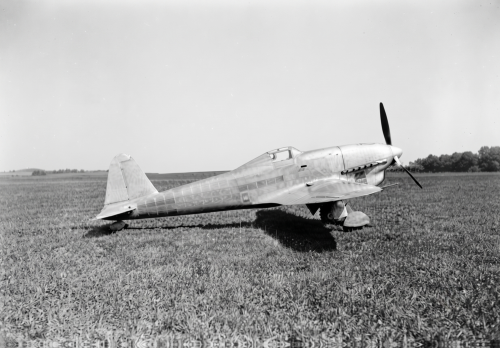

Caproni Vizzola F.6 Prototype
Conception of the F.6
The F.6 project was essentially an attempt to marry the proven F.5 fuselage with a more powerful inline engine and stronger wings.
Caproni retained the F.5’s fuselage but redesigned the wings as all‑metal structures, replacing the earlier wooden construction to improve strength and durability.
This new configuration was designated F.6M—“F” for Fabrizi, the chief designer, and “M” for Metallico, indicating the metal wings.
In parallel, Caproni planned a second prototype, the F.6Z, to test an advanced domestic powerplant, the Isotta Fraschini Zeta, hoping to free Italy from dependence on German engine supplies.
Structure: Mixed construction fuselage derived from the F.5, with newly designed all‑metal wings on the F.6M and F.6Z.
Landing gear: Retractable main undercarriage and tailwheel, typical of contemporary fighters.
Cockpit: Enclosed cockpit positioned just aft of the wing’s mid‑chord, providing reasonable forward visibility over the nose.
The airframe was compact and aerodynamically clean, aiming to exploit the higher power of the chosen engines while keeping weight moderate.
The redesign of the wings was particularly important: metal wings allowed higher load factors and better integration of armament, especially the planned wing‑mounted machine guns.

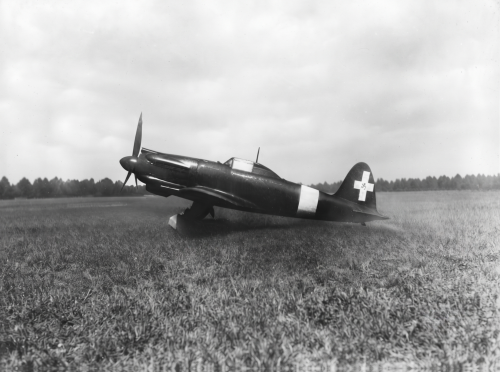

Caproni Vizzola F.6Z
Powerplants
F.6M – Daimler‑Benz DB 605A
Type: Liquid‑cooled, inverted V‑12.
Origin: German, supplied to Italy under Axis cooperation.
Power: Around 1,450 hp class (approximately 1,100 kW), similar to that used in the Macchi C.205 and Bf 109G.
The DB 605A drove a three‑bladed constant‑speed propeller.
Initially, the F.6M carried a large radiator under the nose, just behind the propeller spinner.
Flight tests revealed that this deep chin radiator generated substantial drag, compromising performance.
Caproni subsequently relocated the radiator to a ventral position on the belly, aft of the cockpit, to streamline the nose and reduce drag.
Rating: Officially about 1,500 hp (≈1,100 kW), but in practice only around 1,200 hp (≈900 kW) during tests.
The Zeta was an ambitious Italian attempt to produce a high‑output fighter engine domestically.
Its complexity led to serious development delays and reliability issues.
When the F.6Z finally flew, the engine was underperforming relative to its design rating, and the problems were never fully resolved before Italy’s armistice in September 1943.
Armament
Caproni intended the F.6 to carry heavier armament than the F.5:
F.6M (planned): Four 12.7 mm Breda‑SAFAT machine guns.
Two fuselage-mounted synchronised to fire through the propeller arc.
Two wing‑mounted guns (one per wing), which were provisioned but never actually installed on the prototype.
F.6Z (planned): Three 12.7 mm Breda‑SAFAT machine guns.
One fuselage gun.
Two wing guns.
This armament would have given the F.6 a respectable punch by Italian standards, though still modest compared with late‑war Allied fighters carrying cannon armament.
Estimated performance (F.6M)
Detailed performance figures are sparse, but the F.6M’s specifications broadly matched other DB 605‑powered Italian fighters:
Engine: DB 605A, ~1,450 hp.
Configuration: Single‑seat fighter.
Armament (as flown): 2 × 12.7 mm Breda‑SAFAT in the nose.
Projected performance: Likely in the 600 km/h class at altitude, with climb and ceiling comparable to the Macchi C.205, though the drag issues from the initial radiator layout would have reduced these figures until the ventral radiator modification.
Because only prototypes were built and no full operational trials were completed, the F.6 never received a definitive performance rating in service.
Prototypes and variants

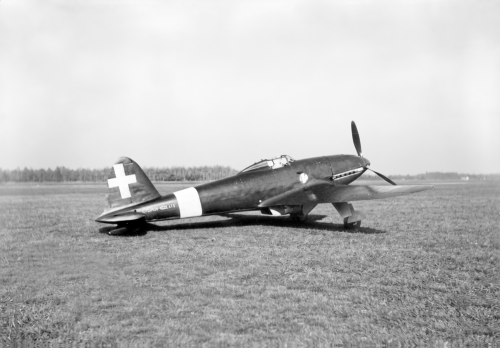

F.6M
The F.6M was the first prototype and the more conventional of the two:
First flight: September 1941.
Key features: DB 605A engine, metal wings, and nose radiator later replaced by a ventral radiator.
Testing: Initial flights highlighted the drag penalty of the deep nose radiator, prompting the redesign.
After modification, testing continued, but the aircraft remained a prototype.
The sole F.6M prototype was eventually damaged in a ground collision at Bresso airfield.
Rather than repair and continue development, Caproni chose to terminate the F.6M programme and redirect resources to the more advanced F.7 fighter project, which promised better long‑term potential.
F.6Z
The F.6Z followed as a parallel exploration of the Zeta engine:
Armament (planned): Three 12.7 mm machine guns (one fuselage, two wings).
Development issues: Persistent engine problems, including failure to reach rated power and reliability concerns.
Flight tests in August–September 1943 confirmed that the Zeta was delivering only about 900 kW (1,200 hp) instead of the intended 1,100 kW (1,500 hp).
These shortcomings, combined with Italy’s deteriorating war situation, meant that there was no realistic path to production.
The F.6Z remained the only fighter ever actually flown with the Zeta engine; other proposed applications, such as the Reggiane Re.2004 never left the drawing board.

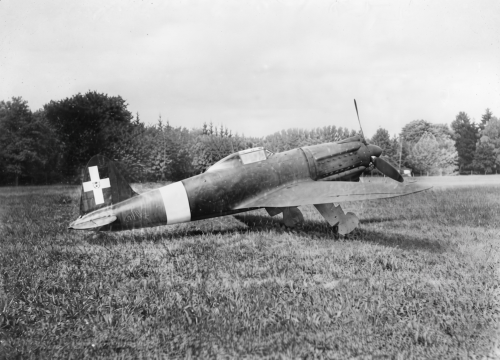

Caproni Vizzola F.6Z
Operational and WWII context
Italian fighter needs in the early 1940s
By 1941–1943, the Regia Aeronautica faced increasingly capable Allied fighters and bombers.
Italy’s main frontline fighters—Macchi C.200, Fiat G.50, and later Macchi C.202/C.205 and Fiat G.55—were in various stages of development and deployment.
The DB 601 and DB 605 engines, supplied by Germany and built under licence, formed the backbone of Italy’s high‑performance fighter fleet.
In this environment, Caproni Vizzola sought to offer an alternative fighter that could leverage the same engines or, in the case of the F.6Z, a home‑grown powerplant.
However, the Italian aircraft industry was fragmented, with multiple firms competing for limited resources and production capacity.
Established designs like the Macchi C.202/C.205 and Fiat G.55 already had strong backing, making it difficult for a smaller programme like the F.6 to secure priority.

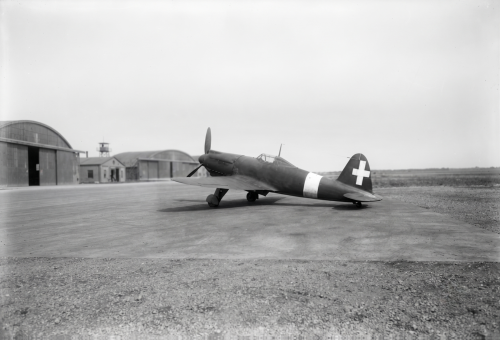

Caproni Vizzola F.6Z
Why the F.6 never entered service
Several factors kept the F.6 from operational use:
Prototype accidents and priorities: The F.6M’s collision at Bresso effectively ended its development, and Caproni preferred to focus on the F.7 rather than rebuild the F.6M. Engine dependency: The F.6M relied on the DB 605A, a powerplant already heavily committed to other Italian fighters.
There was little incentive for the air ministry to divert engines to a new, unproven airframe.
Zeta engine problems: The F.6Z’s fate was tied to the success of the Zeta engine, which never matured.
Its underperformance and reliability issues made the aircraft unsuitable for combat deployment.
Strategic collapse: Italy’s armistice with the Allies on 8 September 1943 abruptly halted many ongoing projects.
The F.6Z was still in test at that time, and the programme was simply abandoned.
As a result, the F.6 remained a footnote in Italian aviation history—interesting technically but overshadowed by more successful contemporaries.

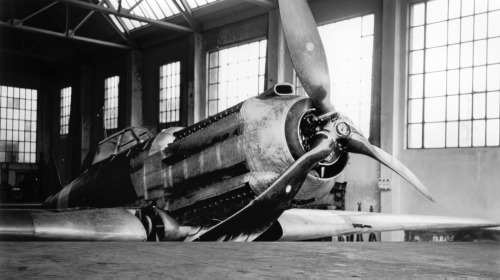

Caproni Vizzola F.6Z (damaged)
Significance and legacy
Although only two prototypes were built, the Caproni Vizzola F.6 illustrates several themes of late‑war Italian fighter development:
Incremental evolution: The F.6 shows how Italian designers tried to stretch existing airframes (like the F.5) by adding more powerful engines and stronger wings rather than starting from scratch.
Engine politics: The split between the DB 605‑powered F.6M and the Zeta‑powered F.6Z reflects Italy’s desire to balance reliance on German technology with domestic innovation—an ambition ultimately frustrated by technical and industrial limitations.
Competition and timing: With the Macchi and Fiat fighters already proving themselves, the F.6 had little room to carve out a niche.
Its late arrival and prototype setbacks meant it never progressed beyond experimental status.
