The Caproni Ca.111 emerged in early‑1930s Italy as a response to the Regia Aeronautica’s need for a simple, rugged, long‑range reconnaissance aircraft capable of operating in remote colonial theatres with minimal logistical support.
Designed in 1931 by Rodolfo Verduzio of Gianni Caproni, it first flew in February 1932 as aircraft MM 205.
Although derived from the earlier Caproni Ca.101, the Ca.111 represented a conceptual shift: instead of the Ca.101’s three engines, the Ca.111 relied on a single, powerful engine, a bold decision given reliability concerns of the era.
This gamble paid off—Ca.111 proved faster than both the Ca.101 and the later Ca.133.
The aircraft was intended for long‑range reconnaissance, light bombing, and colonial policing, especially in North and East Africa, where Italy sought aircraft capable of independent operation over vast, undeveloped terrain.
Airframe and Structural Design

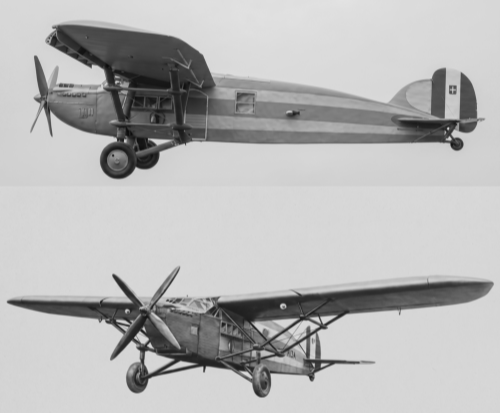

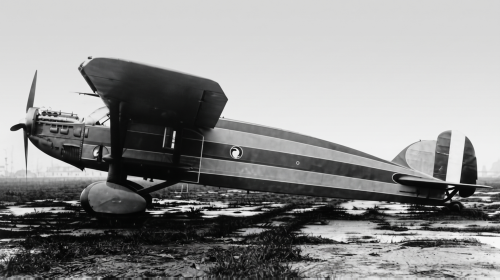

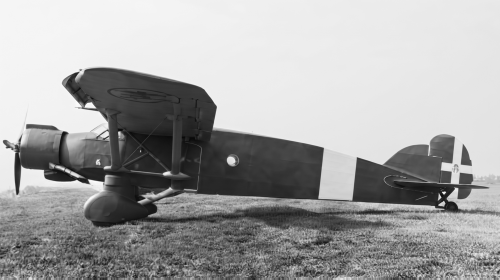

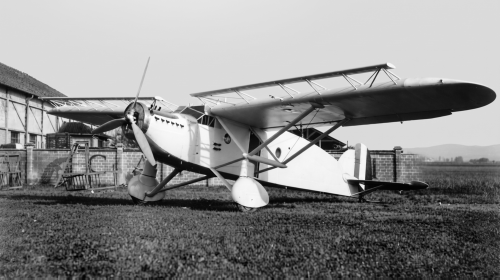

The Ca.111 was a high-wing monoplane built around a tubular steel skeleton covered with fabric and wood, emphasising durability and ease of repair in field conditions.
Fuselage
Square‑section fuselage, optimised for internal volume and structural simplicity.
Multiple crew stations arranged linearly: pilot, co‑pilot/observer, and flight engineer/gunner.
Wing

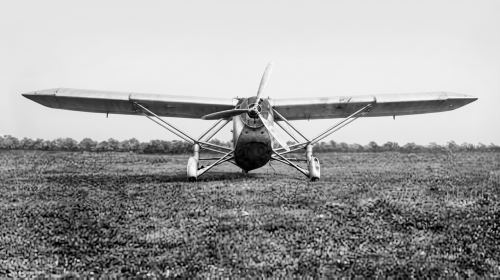

Rectangular wing planform with slightly sloped tips.
Full‑span ailerons along the trailing edge, improving low‑speed control—important for reconnaissance and rough‑field operations.
Undercarriage
Fixed landing gear, constructed from steel tubing.
Complex bracing between fuselage and wing roots provided strength for rough‑field landings.
Powerplant and Propulsion
The Ca.111’s defining innovation was its single water‑cooled Isotta Fraschini Asso 750RC, an 18‑cylinder W‑layout engine.
Propellers

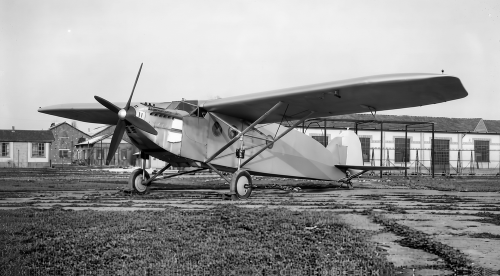

Early aircraft: four‑blade wooden propeller.
Later aircraft: three‑blade metal propeller, ground‑adjustable pitch (not variable in flight), heavier but offering improved performance.
Fuel and Range
Total fuel capacity: 1,960 L (in multiple tanks).
Operational range: 2,000 km, enabling deep‑penetration reconnaissance missions.
Payload
Standard payload: 2,000 kg.
Maximum overload capability: 2,500–2,800 kg, depending on mission requirements.
Crew Stations, Equipment, and Avionics
The Ca.111 carried a three‑man crew: pilot, co‑pilot/observer, and flight engineer/gunner.
Cockpit
Dual instrument panels for both pilots.
Included are the Pezzoni compass, Sonia aerometer, variometer, OMI altimeters, and fire‑detection systems.
Detachable canopy for emergency egress.
Communications
Equipped with RE 350 + AR 5 radio transmitter‑receiver set.
Supported both telegraphy and voice communication.
Two antennas: one fixed, one flexible.
Reconnaissance Equipment
OMI 13×18 photoplanimetric camera or OMI APR 3 panoramic camera.
Optional cine‑machine gun for combat documentation.
Armament
Although primarily a reconnaissance aircraft, the Ca.111 could serve as a light bomber.
Defensive Armament
Up to four 7.7 mm Breda‑SAFAT machine guns in dorsal, ventral, and beam positions.
Bomb Load
Up to 600 kg of bombs in standard configuration.
Performance
Key performance figures (Ca.111 standard model):
Maximum speed: 290 km/h
Rate of climb: 3.10 m/s
Service ceiling: 6,700 m
Range: 1,300–2,000 km (depending on load and configuration)
Wingspan: 19.65 m
Length: 15.30 m
Loaded weight: 5,490 kg
Operational History
Service in Italy

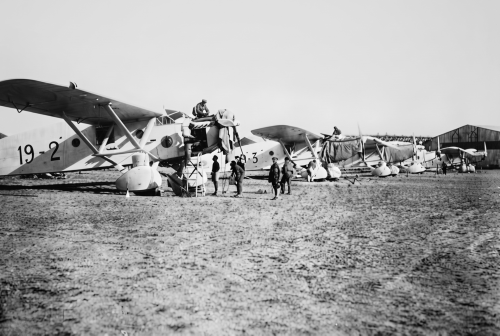

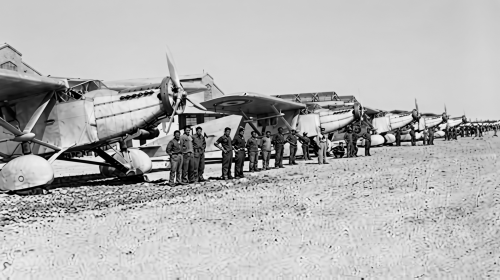

Initial production aircraft were delivered to:
146th and 183rd Squadrons of the 85th Group, followed by the 142nd Squadron.
They performed maritime patrols, reconnaissance, and light attack duties effectively until newer aircraft—especially the CANT Z.501—entered service and surpassed them in performance.
Production ended after 148 units.
Italo‑Abyssinian War (1935–1936)

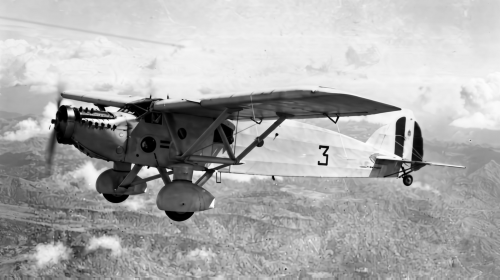

The Ca.111 played a significant role in Italy’s campaign in Ethiopia, conducting the following:
Its long range and rugged construction made it well‑suited to African operations, where infrastructure was limited.
World War II Context
By the outbreak of WWII in 1939, the Ca.111 was obsolete and largely withdrawn from front‑line European service.
More modern aircraft had replaced it, and its colonial role diminished as Italy shifted focus to the European theatre.
However, some Ca.111s continued limited service in peripheral or training roles.

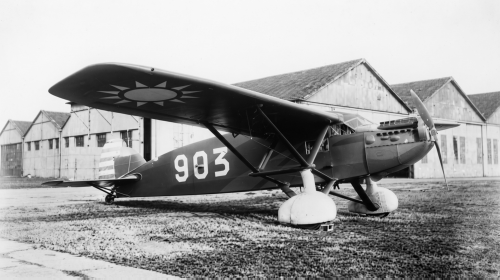

Export Service: Peru
A small number were exported to Peru, where they served in reconnaissance and general utility roles.
Variants
Ca.111 (Standard Landplane)
Primary reconnaissance/light bomber version.
Single‑engine, high‑wing monoplane.
Ca.111 bis
Improved structural and equipment refinements.
Often associated with later production batches.

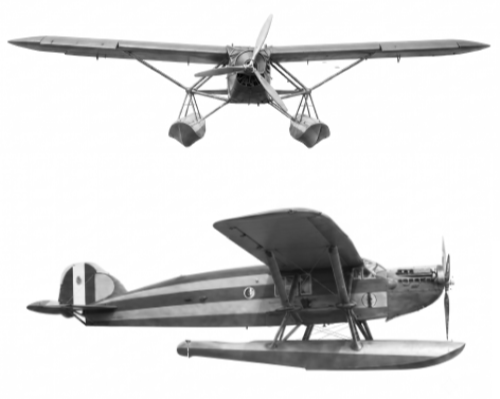

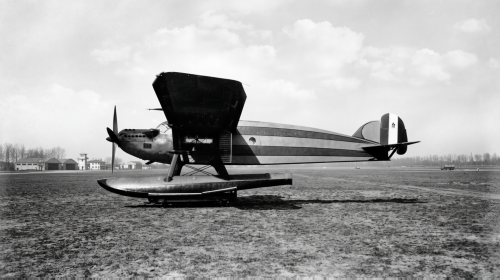

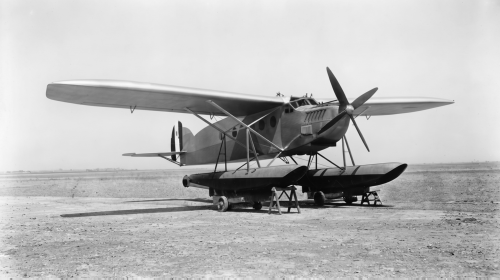

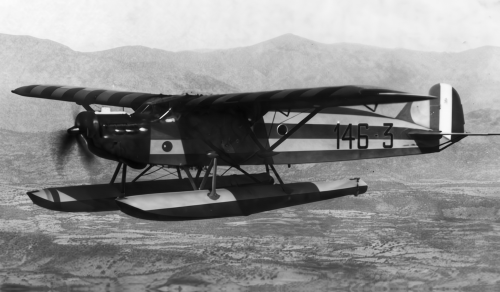

Ca.111 Idro (Seaplane Variant)
Twin‑float maritime reconnaissance version.
Approximately 25 units built.
Used for long‑range maritime patrols.
Legacy
The Caproni Ca.111 occupies a distinctive place in Italian aviation history as a transitional aircraft bridging early multi‑engine colonial designs and later, more advanced reconnaissance platforms.
Its single‑engine long‑range concept, unusual for its time, demonstrated that simplicity and ruggedness could outperform more complex designs in certain theatres.
Although overshadowed by more modern aircraft by WWII, the Ca.111’s service in Africa and its adaptability—landplane, bomber, and seaplane—underscore its importance in Italy’s interwar military aviation strategy.
