Boeing Stearman XAT-15 Crewmaker

Only two prototypes, designated XAT-15, were built.

The proposed name Crewmaker was not officially adopted.

One of the first projects for the former Stearman Aircraft Company which in 1939 had become the Wichita Division of Boeing was a twin engined trainer for bomber crews.

Designated X-120 by the company, two examples were ordered by the United States Army Air Corps as the XAT-15.

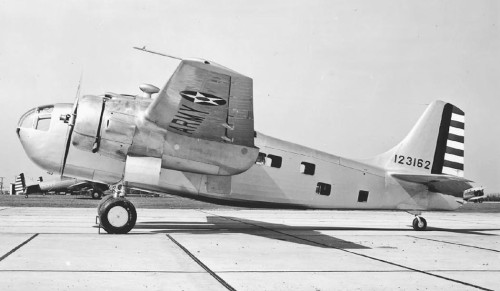

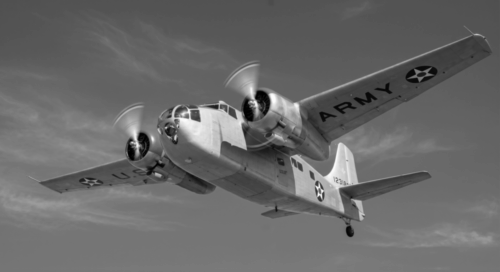

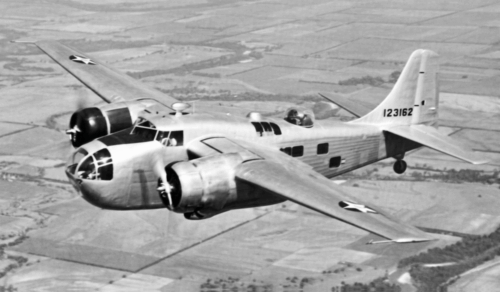

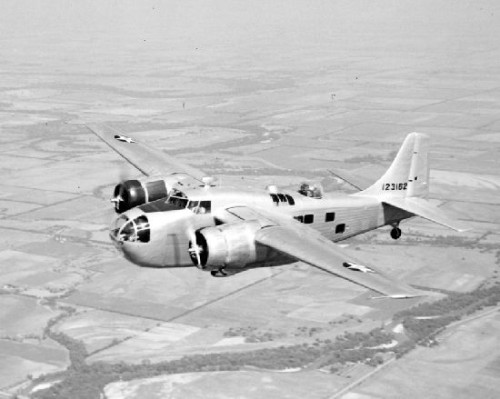

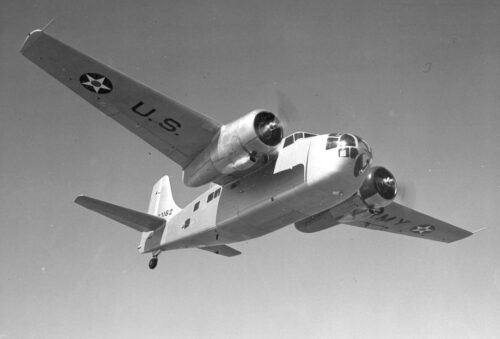

The AT-15 was a high-wing cantilever monoplane with two wing-mounted Pratt & Whitney R-1340 Wasp radial engines.

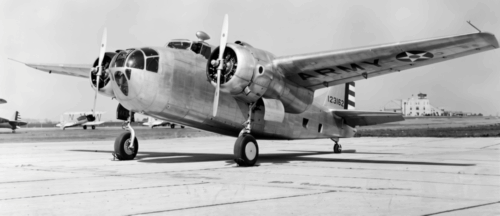

It had a retractable tailwheel landing gear and an extended glazed fuselage nose for the trainee bomb-aimer.

Due to shortage of materials, the aircraft was built of welded steel tube covered with plywood, with wooden wings and tail unit.

The two aircraft were delivered to the USAAC, but after the country’s entry into the war a change in priorities resulted in the planned order for more than 1,000 aircraft not being placed.



42 ft 4 in (12.90 m)


59 ft 8 in (18.19 m)

Wing area

457 sq ft (42.46 m2)

Empty weight

10,640 lb (4,826 kg)

Gross weight

14,355 lb (6,511 kg)


2 × Pratt & Whitney R-1340-AN-1 Wasp radial piston engine,

600 hp (447 kW) each


Maximum speed

207 mph (333 km/h, 180 kn)


850 mi (1,368 km, 740 nmi)

Service ceiling

18,900 ft (5,760 m)


4 x 0.3in (7.62mm) machine guns

10 x 100lb (45kg) bomb.
