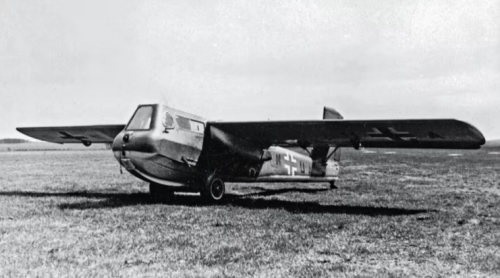

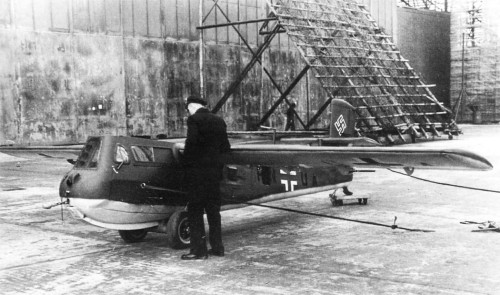

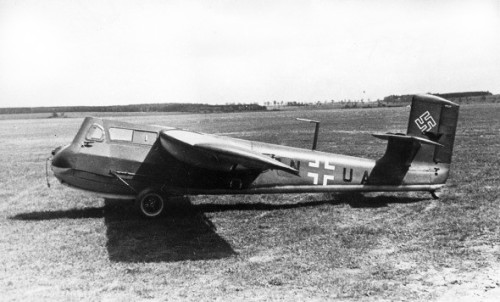

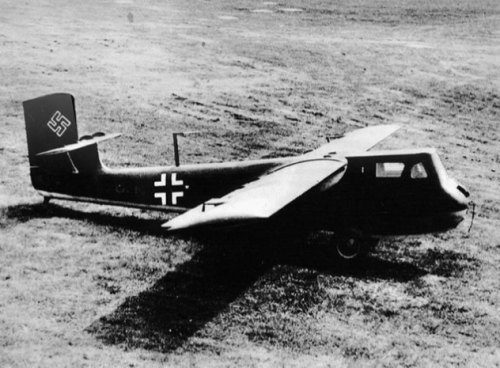

The Blohm & Voss BV 40 was a German glider fighter designed to attack Allied bomber formations during the time of the bombing raids over Nazi Germany.
The BV 40 was the smallest glider that could accommodate an armoured cockpit and two cannon with limited ammunition.
By eliminating the engine and lying the pilot in a prone position, the cross-sectional area of the fuselage was much reduced, making the BV 40 harder for bomber gunners to hit.
The plane was designed to use non-strategic materials and to be built in as short a time as possible by non-skilled workers.
The fuselage was constructed almost entirely of wood.

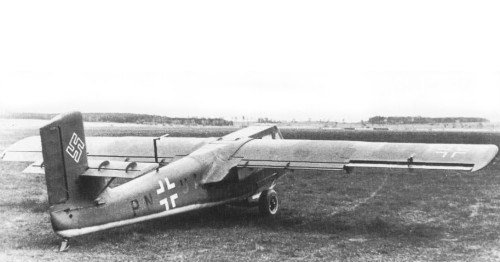

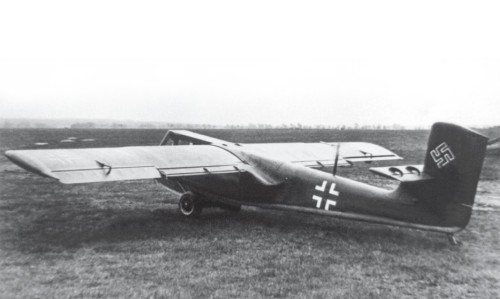

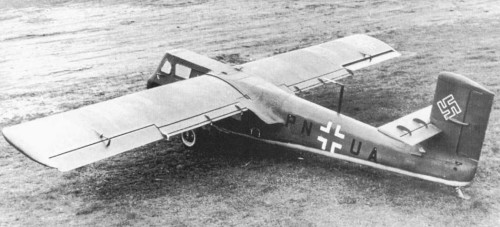

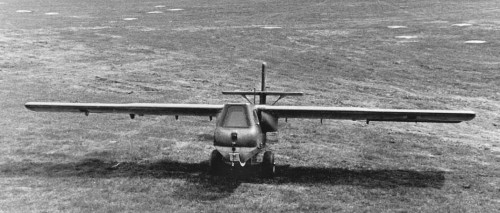

It was of conventional layout, the glider had a high-mounted, straight untapered wing with a similarly shaped tail plane mounted on the fin just above the fuselage.

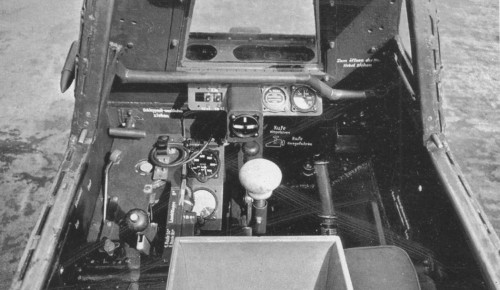

The pilot lay prone in an armoured steel cockpit in the nose of the aircraft.
The front steel plate was 20 millimetres (0.79 in) thick and was fitted with a windscreen of 120-millimetre (4.7 in) thick, armoured glass that gave the aircraft a blunt nosed appearance.
Two 30 mm (1.18 in) MK 108 cannon were mounted in the wing roots.
There was no conventional undercarriage.

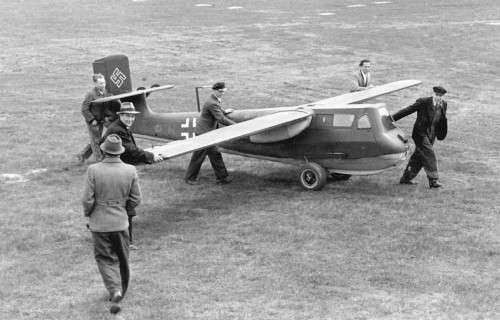

A twin wheeled dolly was used for take-off and dropped once the glider was airborne.
A skid under the nose was lowered for landing.
The BV 40 interceptor glider was conceived by Dr Richard Vogt, chief designer and technical director of Blohm & Voss, as a low-cost emergency solution to the problem of the Allied bomber formations which were devastating Germany in the latter half of World War II.
It was to be towed by a Messerschmitt Bf 109 to operational altitude and released above the Allied bombers’ combat box.
Once released, it would dive down at a sharp angle towards the enemy bomber fleet.
During its short attack time, the BV 40 would fire its weapons, then glide back to earth.
Several prototypes were completed and flown, towed behind a Messerschmitt Bf 110.
The first flight took place in May 1944.
It was found the craft could reach 292 miles per hour (470 km/h) and it was thought to have the potential to go far faster.
Various changes to the requirement and to the design were discussed, before the project was cancelled later in the year.
In all, seven aircraft were completed and five of them flown.
Owing to the potential dangers for the pilot inherent in the operation of this precarious aircraft, the BV 40 is sometimes listed as a suicide weapon, but it was not intended as such.
Specifications
Crew
1
Length
5.7 m (18 ft 8 in)
Wingspan
7.9 m (25 ft 11 in)
Height
1.63 m (5 ft 4 in)
Wing area
8.7 m2 (94 sq ft)
Empty weight
838 kg (1,847 lb)
Gross weight
952 kg (2,099 lb)
Performance
Never exceed speed
900 km/h (560 mph, 490 kn)
Landing speed
125 km/h (78 mph; 67 kn)
Armament
Guns
2 × fixed forward firing 30 mm (1.181 in) Rheinmetall-Borsig MK 108 cannon with 35 Rpg.
