Bloch MB.170 Series

1st Flight 1934

The Bloch MB.170 and its derivatives were French reconnaissance bombers designed and built shortly before the Second World War.

They were the best aircraft of this type available to the Armée de l’Air at the outbreak of the war, with speed, altitude and manoeuvrability that allowed them to evade interception by the German fighters.

Although the aircraft could have been in service by 1937, debate over what role to give the aircraft delayed deliveries until 1940.

Too few in number to affect the Battle of France, they continued in service with the Vichy forces after the armistice.

Variants

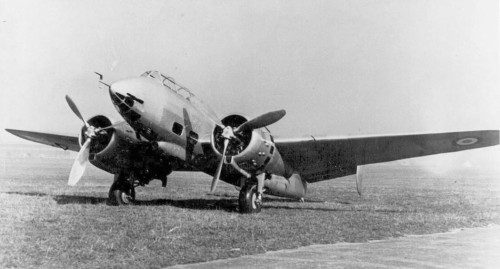

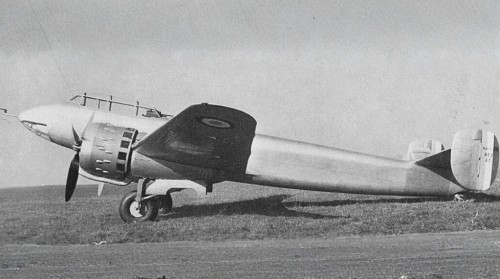

MB.170

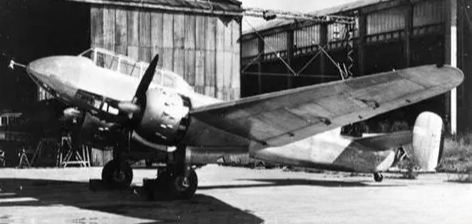

MB.170.01 – The first prototype, equipped as reconnaissance aircraft, powered by Gnome-Rhône 14N-06 engines.

MB.170.02 – The second prototype, equipped as light bomber, powered by Gnome-Rhône 14N-06 engines.

MB.171

MB.172

MB.173

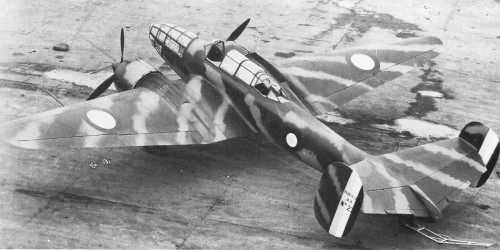

MB.174

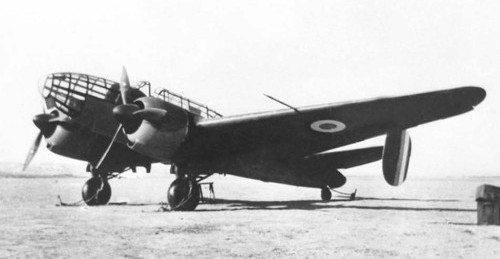

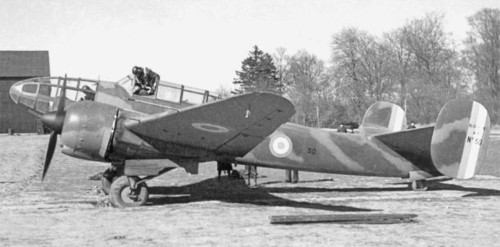

MB.174.01 – The original MB.174 prototype, powered by Gnome-Rhône 14N-49 engines.

MB.174A.3 – Original production version, powered by Gnome-Rhône 14N-49 engines.

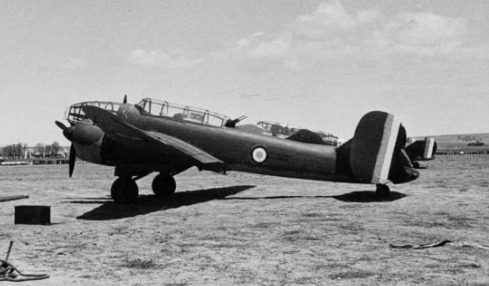

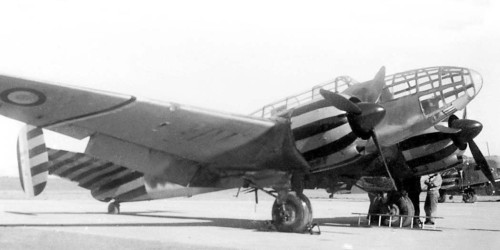

MB.175

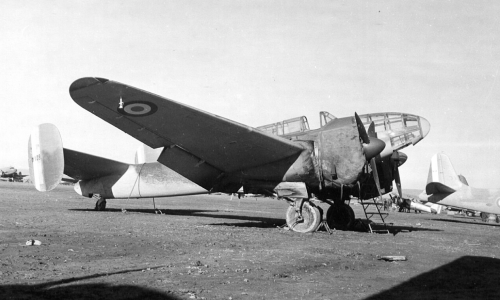

MB.175.01 – The original MB.175 prototype, powered by Gnome-Rhône 14N-48 engines.

MB.175B.3 – Second production version, plus 56 unarmed aircraft for the Luftwaffe, powered by Gnome-Rhône 14N-48 engines.

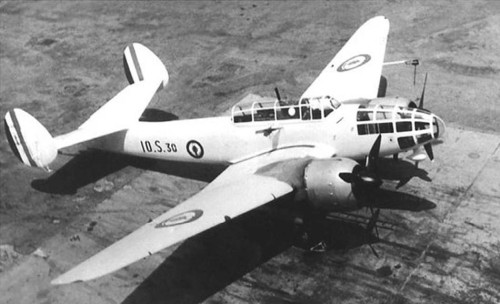

MB.175T – Post-war torpedo bomber version for the Aeronavale.

MB.176 / MB.176.01 – The original MB.176 prototype, powered by two Pratt & Whitney R-1830 SC 3-G Twin Wasp engines

MB.176B.3 – Production version.

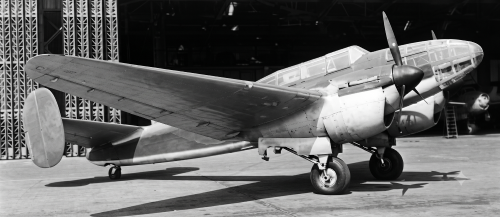

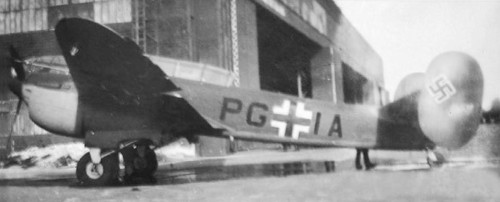

MB.177 – Single prototype, powered by two Hispano-Suiza 12Y-31 inline engines.

MB.178 – Further development, construction halted by arrival of German forces.

Specifications

Crew: 3

Length: 12.23 m (40 ft 1 in)

Wingspan: 17.92 m (58 ft 10 in)

Height: 3.55 m (11 ft 8 in)

Wing area: 38 m2 (410 sq ft)

Empty weight: 5,612 kg (12,372 lb)

Gross weight: 7,175 kg (15,818 lb)

Powerplant: 2 × Gnome-Rhône 14N 14-cylinder air-cooled radial piston engine, 772 kW (1,035 hp) each

Propellers: 3-bladed variable-pitch propellers

Performance

Maximum speed: 530 km/h (330 mph, 290 kn) at 5,200 m (17,060 ft)

Cruise speed: 460 km/h (290 mph, 250 kn) at 4,000 m (13,120 ft)

Range: 1,650 km (1,030 mi, 890 nmi)

Service ceiling: 11,000 m (36,000 ft)

Time to altitude: 8,000 m (26,250 ft) in 11 minutes

Armament

Guns: 2 × fixed, forward-firing 7.5 mm (.295 in) MAC 1934 machine guns in the wings

2 × 7.5 mm MAC 1934s in the dorsal position

3 × 7.5 mm MAC 1934s on aft-firing mounts

Bombs: 400 kg (880 lb) of bombs – usually 8 50 kg (110 lb) or 16 22 kg (48.5 lb) bombs internally plus 6 x 22 kg bombs or flares under wing (As an alternative, 175 illumination bombs carried internally plus 6 x 22 kg bombs or flares underwing for night time photographic missions).

……………………………………………………………………………………………………………………………………………………………………………………………………………………………………
