Bellanca Aircruiser / Airbus
The Bellanca Aircruiser and Airbus were high wing, single engined aircraft built by Bellanca Aircraft Corporation of New Castle, Delaware.
The aircraft was built as a “workhorse” intended for use as a passenger or cargo aircraft.
It was available with wheels, floats or skis.
The aircraft was powered by either a Wright Cyclone or Pratt and Whitney Hornet engine.
The Airbus and Aircruiser served as both commercial and military transports.
Variants
Airbus
Bellanca P
Commercial version of Bellanca K, powered by a 500 hp (370 kW) Pratt & Whitney R-1860 Hornet.

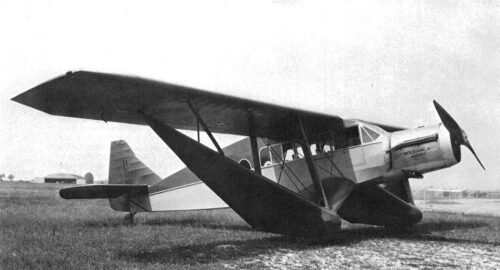

P-100 Airbus
14 passenger monoplane powered by a 600 hp (450 kW) Curtiss Conqueror engine, one built, later converted into a P-200.

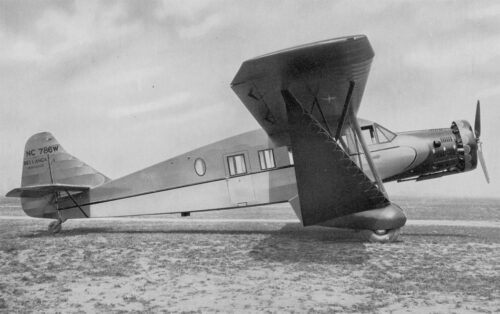

P-200 Airbus
12-passenger monoplane, nine built and one converted from P-100.
P-300 Airbus
15-seater monoplane powered by a Wright R-1820 Cyclone engine.

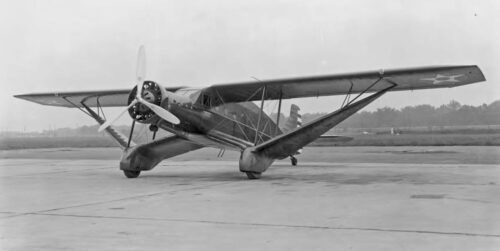

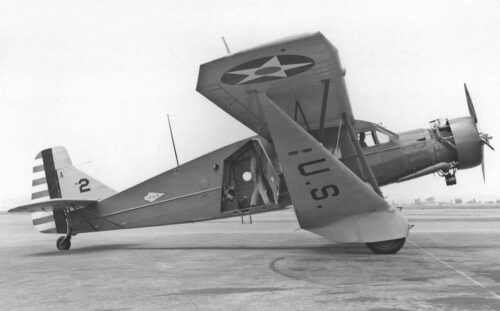

Y1C-27
United States Army Air Corps designation for four P-200 Airbuses powered by 550 hp (410 kW) Pratt & Whitney R-1860 Hornet B engine.
All later converted to C-27C.

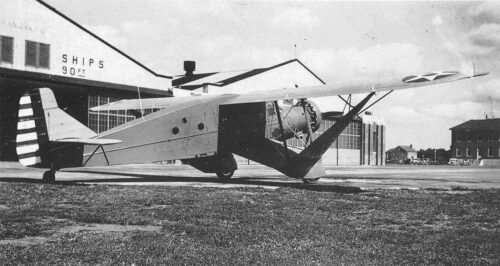

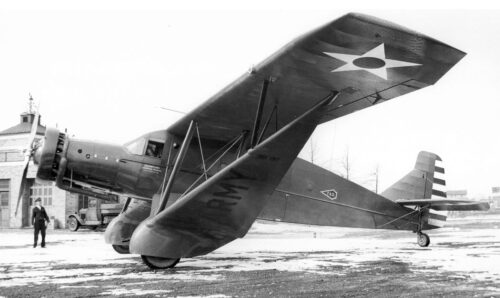

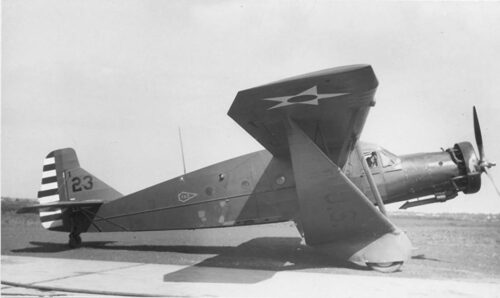

C-27A Airbus
Production version of the Y1C-27 powered by a 650 hp (480 kW) Pratt & Whitney R-1860 Hornet B engine, ten built.
One converted to a C-27B the rest converted to C-27Cs.

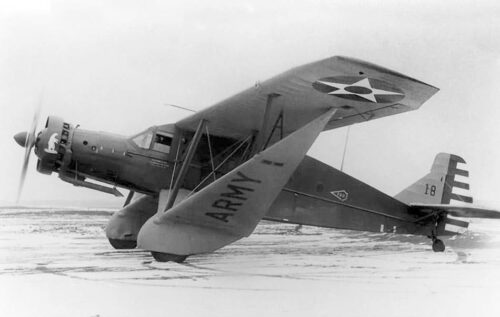

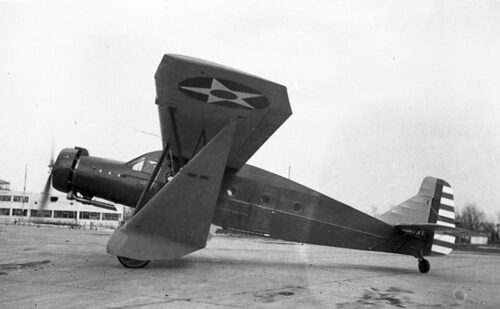

C-27B Airbus
One C-27A re-engined with a 675 hp (503 kW) Wright R-1820-17 Cyclone engine.

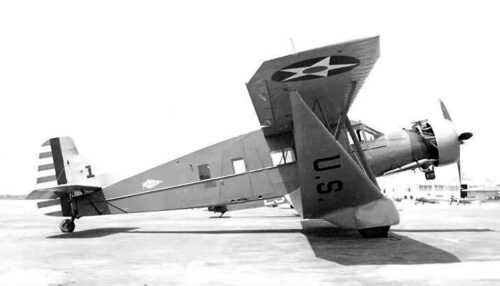

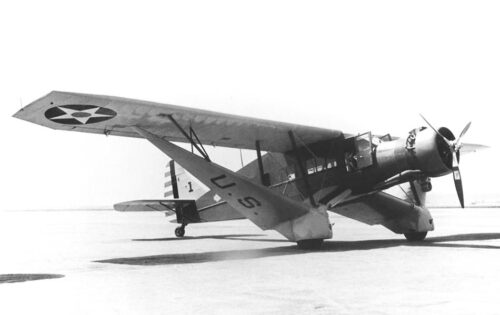

C-27C Airbus
Four Y1C-27s and nine of the C-27A re-engined with a 750 hp (560 kW) Wright R-1820-25 Cyclone engine.
Aircruiser
Aircruiser 66-67
Improved structure modified from a P-200 with a 675 hp (503 kW) Wright SR-1820 Cyclone engine
Aircruiser 66-70
Aircruiser with a 710 hp (530 kW) Wright SGR-1820 Cyclone engine, five built & exported to Canada.

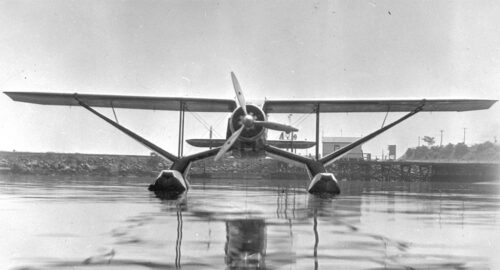

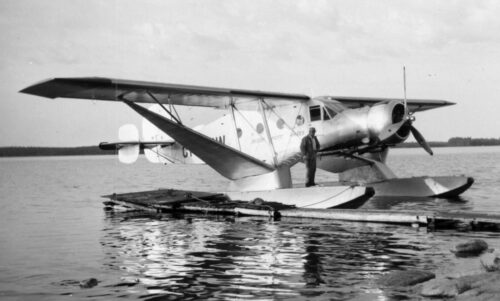

Aircruiser 66-75
Aircruiser with a 730 hp (540 kW) Wright Cyclone engine, three built.
Aircruiser 66-76
A cargo version of the Aircruiser with a 760 hp (570 kW) Wright Cyclone.
Aircruiser 66-80
An Aircruiser with an 850 hp (630 kW) Wright Cyclone engine.
Specifications
66-70 Aircruiser
Crew
One
Capacity
16 passengers
Length
43 ft 4 in (13.21 m)
Wingspan
65 ft 0 in (19.82 m)
Height
11 ft 6 in (3.51 m)
Wing area
520 sq ft (48.3 m2)
Empty weight
6,072 lb (2,754 kg)
Gross weight
10,000 lb (4,536 kg)
Powerplant
1 × Wright R-1820 Cyclone 9, 9 cylinder supercharged air cooled radial engine,
710 hp (530 kW)
Performance
Maximum speed
144 kn (165 mph, 266 km/h)
Range
608 nmi (700 mi, 1,130 km)
Service ceiling
22,000 ft (6,700 m).
