Avia B.135

In the mid-1930s, Czechoslovakia sought to modernise its air force, leading Avia to design the B.35 monoplane fighter as a successor to the B-534 biplane.

The B.35 blended modern ideas with older features, using a steel tube fuselage with metal skin at the front, fabric at the rear, wooden elliptical wings, and a fixed, spatted undercarriage, powered by an 860 hp Hispano-Suiza V-12.

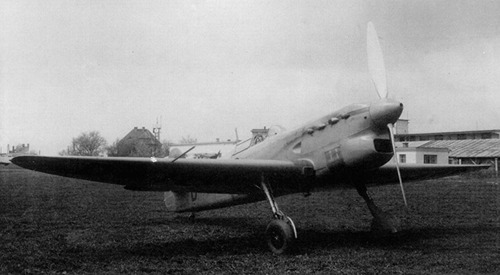

Despite some outdated aspects, it proved highly manoeuvrable, and Avia evolved it into the B.35/3 prototype with retractable landing gear, all-metal wings, and better aerodynamics and visibility.

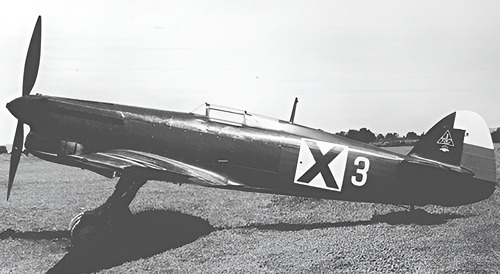

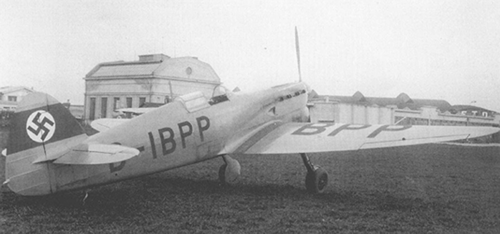

This became the basis for the B.135, finalised in 1938, featuring a cantilever low-wing design, an enclosed cockpit with a raised spine, and armament of a 20 mm MG FF cannon and two 7.92 mm vz. 30 machine guns, while retaining the Hispano-Suiza engine and fixed-pitch wooden propeller.

Bulgarian officers were impressed, ordering 12 aircraft built in Czechoslovakia, along with engines and a licence for local production as the DAR 11 “Lyastovitsa”, though only the original 12 were made before German authorities halted production.

Engine reliability issues limited the B.135 mostly to training roles, though on March 30, 1944, four of them intercepted USAAF bombers over Bulgaria, possibly downing a B-24 in one of their few combat actions.

Specifications

(B.135)

Crew

one

Length

8.5 m (27 ft 11 in)

Wingspan

10.85 m (35 ft 7 in)

Height

1.6 m (5 ft 3 in)

Wing area

17 m² (180 sq ft)

Empty weight

2,063 kg (4,548 lb)

Max takeoff weight

2,547 kg (5,615 lb)

Powerplant

1 × Avia (Hispano-Suiza) 12Ycrs V-12 liquid-cooled piston engine,
641 kW (860 hp)

Propellers

2-bladed wooden fixed-pitch propeller

Performance

Maximum speed

535 km/h (332 mph, 289 kn) at 4,000 m (13,000 ft)

Cruise speed

460 km/h (290 mph, 250 kn)

Range

550 km (340 mi, 300 nmi)

Service ceiling

8,500 m (27,900 ft)

Rate of climb

13.5 m/s (2,660 ft/min)

Armament

Guns

1 × 20 mm (0.79 in) MG FF cannon

2 × 7.92 mm (0.312 in) vz. 30 (Česká zbrojovka Strakonice) machine guns.
