Arado Ar 240

1st Flight 1940

Military Users- Luftwaffe

The Arado Ar 240 was a German twin-engine, multi-role heavy fighter aircraft, developed for the Luftwaffe during World War II by Arado Flugzeugwerke.

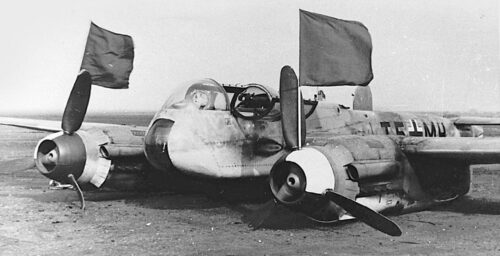

Ar 240

Its first flight was in 1940, but problems with the design hampered development, and it remained only marginally stable throughout the prototype phase.

The project was eventually cancelled, with the existing airframes used for a variety of test purposes.

The Ar 240 came about as the response to a 1938 request for a much more capable second-generation heavy fighter to replace the Messerschmitt Bf 110, which was becoming outdated.

Both Arado and Messerschmitt responded.

Messerschmitt’s response, the Me 210, was a totally new design, but thanks to Messerschmitt’s experience with the Zerstörer (“Destroyer”) concept, it would be able to enter service quickly. Arado’s design was considerably more ambitious for the smaller firm, a dream project of Arado’s chief designer, Walter Blume, since the mid-1930s.

While it would take some time before deliveries of the Arado design could begin, the Reichsluftfahrtministerium (RLM) was nevertheless interested enough to order prototypes of both designs.

Prior to this point, Arado had invested heavily in several lines of basic research.

One was the development of the “Arado travelling flap” which offered excellent low-speed lift performance.

Another was ongoing work in the design and construction of pressurized cockpits, which dramatically lowered pilot fatigue for any flight above about 4,500 m (14,760 ft).

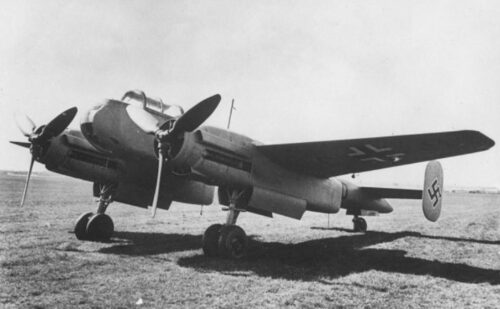

Ar 240

Finally, they had also invested in a technically advanced remote-control defensive gun system, which they had been experimenting with for several years.

The system used a gun sight located in the rear cockpit, operated by the navigator/gunner, which had optics on both the top and bottom of the aircraft, allowing aim in any direction.

The gunsight was hydraulically connected to well-streamlined pancake-shaped, remotely-operated turrets on the top and bottom of the aircraft.

For the Ar 240 design, the Arado engineers combined all this research into a single airframe.

For outright performance, they used as small a wing as reasonable, thereby lowering parasite drag.

Ar 240

Normally this would make the plane have “impossibly high” landing speeds, but this was offset by the use of a huge travelling flap and leading edge slats for high low-speed lift.

When the flaps were extended, the upper portion of the ailerons would remain in place while the lower portion extended rearward, essentially increasing the wing area.

The Daimler-Benz DB 601 inline engines were conventionally installed and equipped with three-blade, fully adjustable propellers.

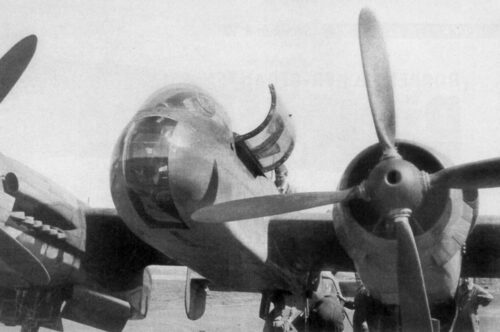

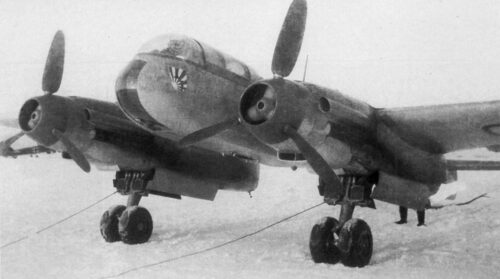

The radiators were somewhat unusual however, quite similar to those fitted to the Junkers Ju 88 which pioneered them, but much more closely resembling the intended installation of the radiators intended for the Junkers Ju 288, when powered by its intended multibank Junkers Jumo 222 liquid-cooled 24-cylinder engines, for both types, consisting of an annular block located in front of each engine, but with the Ar 240 partially covering each of them with an oversized, ducted flow-through propeller spinner forward of each radiator unit, with air entering through a large hole in the front of the spinner and exiting out of the cowl flaps, as the Jumo 222-powered Ju 288 design was intended to have.

As with the Jumo inline-powered versions of the Ju 88, this made the plane look as if it were mounting a radial engine, and the Ar 240, like later Jumo inline-powered fighter aircraft from the Focke-Wulf firm also benefitted from the simpler setup of an annular radiator just forward of the engine.

Ar 240

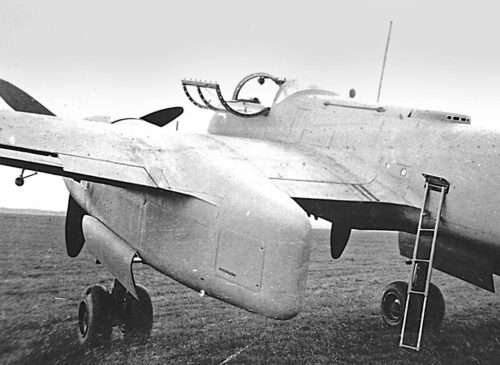

The fuel cells in the wings were provided with a newly developed self-sealing system that used thinner tank liners, allowing for more fuel storage.

The liners could not be easily removed as they stuck to the outer surface of the tank, so in order to service them, the wing panelling had to be removable.

This led to a complex system for providing skinning stiff enough to be handled in the field, complicating construction and driving up weight.

As with all German multi-use aircraft designs of the era, the aircraft was required to be a credible dive bomber.

The thick wing panelling was not suitable for piercing for conventional dive brakes, so a “petal”-type brake was installed at the extreme rear of the fuselage, appearing much like what had been trialed with the Dornier Do 217, which, unlike the Do 217’s vertically-opening “petals”, opened to the sides instead when activated.

Ar 240

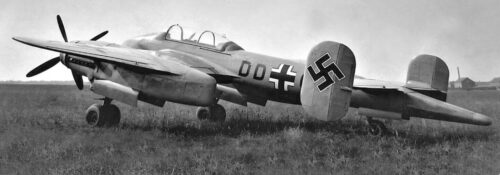

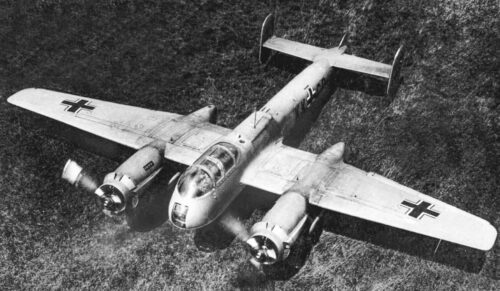

When closed the brake looked like a stinger, extending beyond the horizontal stabilizer and twin fins.

Finally, the cockpit was fully pressurized.

This would not have been easy if the armament had to be hand-operated by the gunner, as it would have required the guns to penetrate the rear of the cockpit canopy.

However, the remote control system allowed them to be located in turrets in the unpressurized rear of the fuselage.

All of this added weight, and combined with the small wing, led to a very high wing loading of 330 kg/m2 (221 lb/ft2), compared to an average of about a 100 for a single-seat fighter.

Ar 240


Crew: two

Length: 12.81 m (42 ft 0 in)

Wingspan: 13.34 m (43 ft 9 in)

Height: 3.95 m (13 ft 0 in)

Wing area: 31.3 m2 (337 sq ft)

Empty weight: 6,200 kg (13,669 lb)

Gross weight: 9,450 kg (20,834 lb)

Max takeoff weight: 10,297 kg (22,701 lb)

Power plant: 2 × Daimler-Benz DB 601E inverted V-12 liquid-cooled piston engine, 876 kW (1,175 hp) each

Propellers: 3-bladed constant speed metal propellers


Maximum speed: 618 km/h (384 mph, 334 kn)

Cruise speed: 555 km/h (345 mph, 300 kn)

Range: 2,000 km (1,200 mi, 1,100 nmi)

Service ceiling: 10,500 m (34,400 ft)

Rate of climb: 9.083 m/s (1,788.0 ft/min)

Time to altitude: Climb to 6,000 m (19,700ft): 11 min


Guns: 2 × fixed 7.92 mm (.312 in) MG 17 machine guns

Two remote-control turrets with 2 × 7.92 mm (.312 in) MG 81 machine guns

Bombs: 1,800 kg (4,000 lb) bombs

Ar 240


Jane’s Encyclopedia of Aviation-Michael J. H Taylor.

The Complete Book of Fighters-William Green & Gordon Swanborough.

The wings of the Luftwaffe- William Green

Aircraft of the Third Reich- William Green.
