Ambrosini SAI.207

Ambrosini SAI.207

The SAI.207 was developed by Società Aeronautica Italiana (SAI) Ambrosini, based on the pre-war SAI.7 racing aircraft.

Designed by Sergio Stefanutti, it was part of a concept to create lightweight, high-performance fighters using wooden construction—a strategic choice to conserve strategic materials like aluminium.

The first prototype flew in spring 1941, evolving from the earlier SAI.107.

Operational Trials

The aircraft impressed during trials with its agility and speed, making it ideal as a high-speed interceptor.

A pre-production batch of 12 aircraft was ordered for testing, and the Italian Air Force planned to produce 2,000 units.

However, mixed results during operational evaluation and the Armistice of 1943 halted full-scale production.

Service Use

The first batch was assigned to 83a Squadriglia of 18o Gruppo CT, arriving in June 1943.

Later, six aircraft were transferred to 162a and 163a Squadriglia of 161o Gruppo CT.

Despite its performance, the SAI.207 saw limited combat use, overshadowed by wartime disruptions and Italy’s surrender.

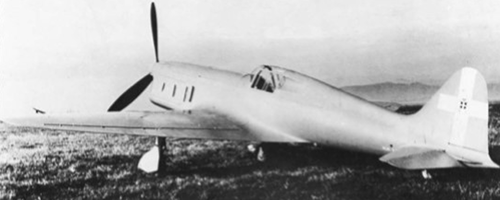

First Prototype – MM.441

First Flight

Early 1942 at Castiglione del Lago airfield

Test Pilot

Mario Faccioli

Outcome

Crashed on 5 December 1942, killing Faccioli and halting the initial test cycle.

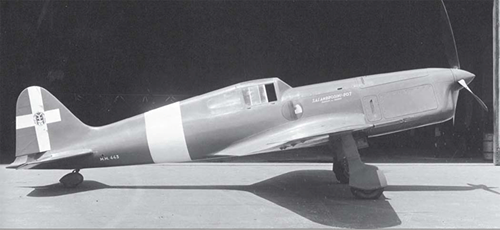

Second Prototype – MM.442

First Flight

Spring 1943

Upgrades

Engine

More powerful Delta RC.40 (750 hp)

Armament

Two 12.7 mm + two 7.7 mm machine guns

Performance

Confirmed superior to other fighters in its class

Impact

Led to the order of a pilot batch of 12 aircraft (MM.8425–MM.8436) for operational testing.

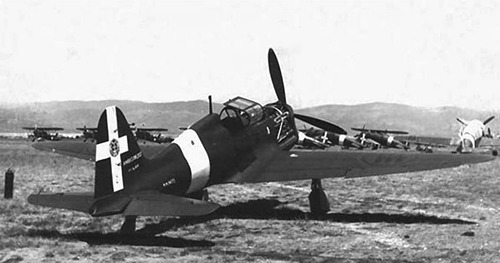

Pre-production Variants

Quantity

12 aircraft were ordered as a pre-production batch for operational testing.

Timeline

These units were built and delivered between late 1942 and early 1943.

Squadron Assignment

They were assigned to the 83rd Squadron of the 19th Group, stationed at Cerveteri airfield near Rome.

Operational Challenges

Performance

While horizontal and diving speeds were excellent (up to 580 km/h level flight and 800+ km/h in a dive), climb rate and manoeuvrability were poor.

Structural Issues

The wooden airframe proved vulnerable to environmental conditions—rain and humidity significantly degraded flight characteristics.

Specifications

(SAI.207)

Crew

1

Length

8.0 m (26 ft 3.75 in)

Wingspan

9.0 m (29 ft 6.5 in)

Height

2.87 m (9 ft 5 in)

Wing area

13.90 m² (149.6 sq ft)

Empty weight

1,750 kg (3,858 lb)

Gross weight

2,415 kg (5,324 lb)

Powerplant

1 × Isotta Fraschini Delta III R.C.40 inverted V-12 engine,
560 kW (750 hp)

Performance

Maximum speed

641 km/h (398 mph, 346 kn)

Cruise speed

489 km/h (304 mph, 264 kn)

Range

850 km (528 mi, 459 nmi)

Service ceiling

12,000 m (39,400 ft)

Rate of climb

13.25 m/s (2,600 ft/min)

Time to altitude

6,000 m (20,000 ft) in 7 minutes 33 seconds

Armament

Guns

2 × 12.7 mm (0.500 in) Breda-SAFAT machine guns.
