The Aichi H9A, designated by the Imperial Japanese Navy (IJN) as the Navy Type 2 Training Flying Boat, emerged from a late‑1930s requirement to modernise Japan’s seaplane‑crew training infrastructure.
As Japan expanded its long-range maritime aviation capability—particularly with the introduction of the large, four-engined Kawanishi H8K “Emily”—the Navy recognised that existing trainers were inadequate for preparing multi-crew teams for complex flying-boat operations.
In January 1940, Aichi Kokuki was tasked with designing a new advanced seaplane trainer capable of replicating the operational environment of frontline flying boats.
Aichi’s design team, led by Morishige Mori, developed the aircraft under the internal designation AM‑21 (or AM‑212 in some sources).
The first of three prototypes flew in September 1940, revealing handling issues that prompted modifications, including lowered wings, enlarged surfaces, and revised flaps.
These refinements produced a stable, forgiving aircraft suitable for training novice crews.
Production followed in 1942, with Aichi building 24 aircraft and Nippon Hikoki adding four more, for a total of 31 H9A1s.
Design Philosophy and Structural Features

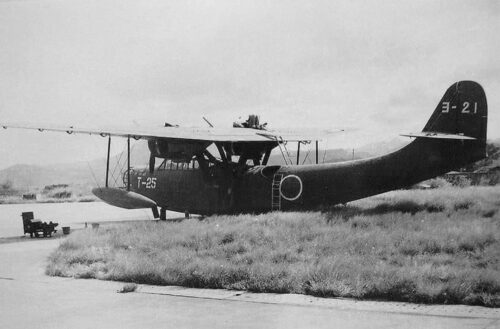

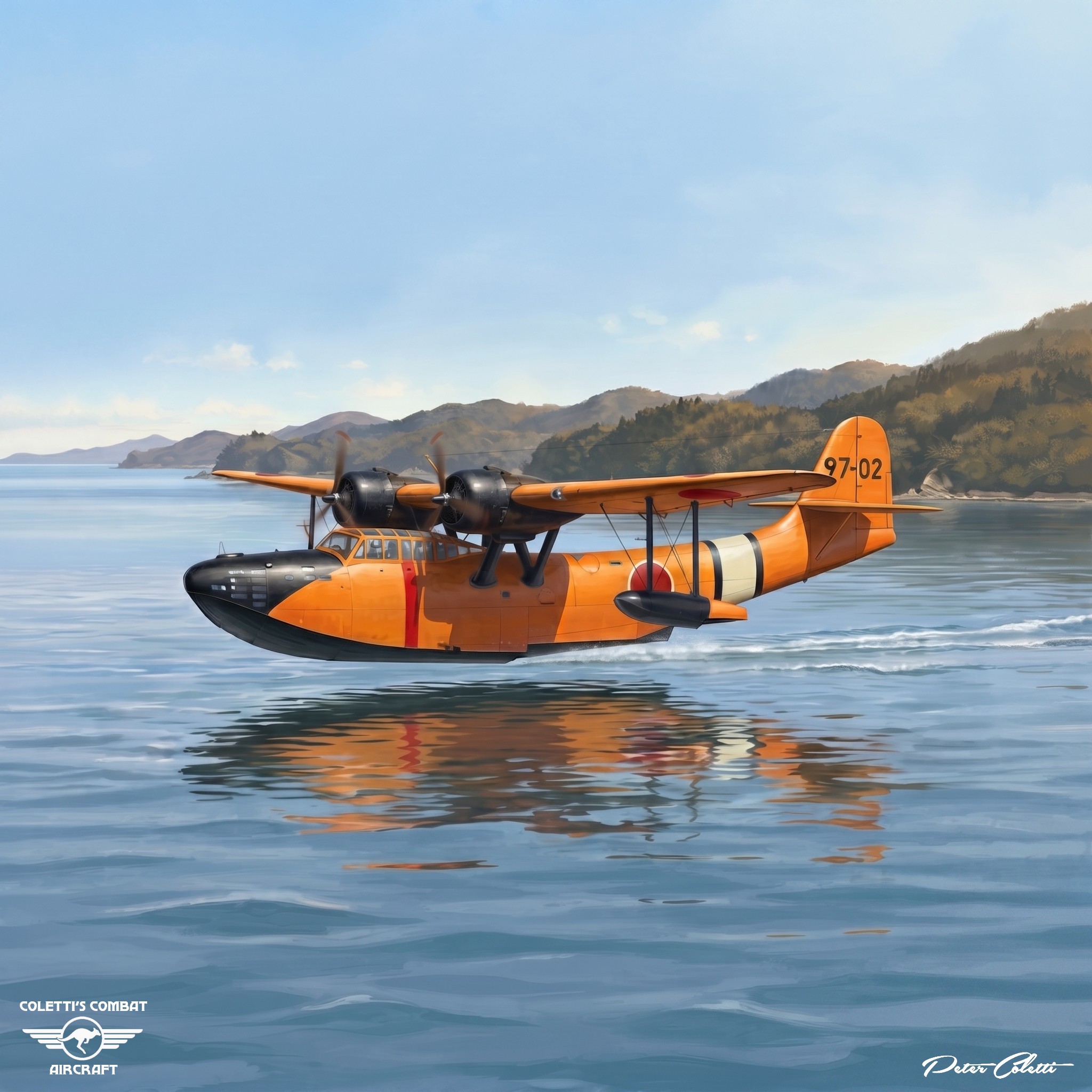

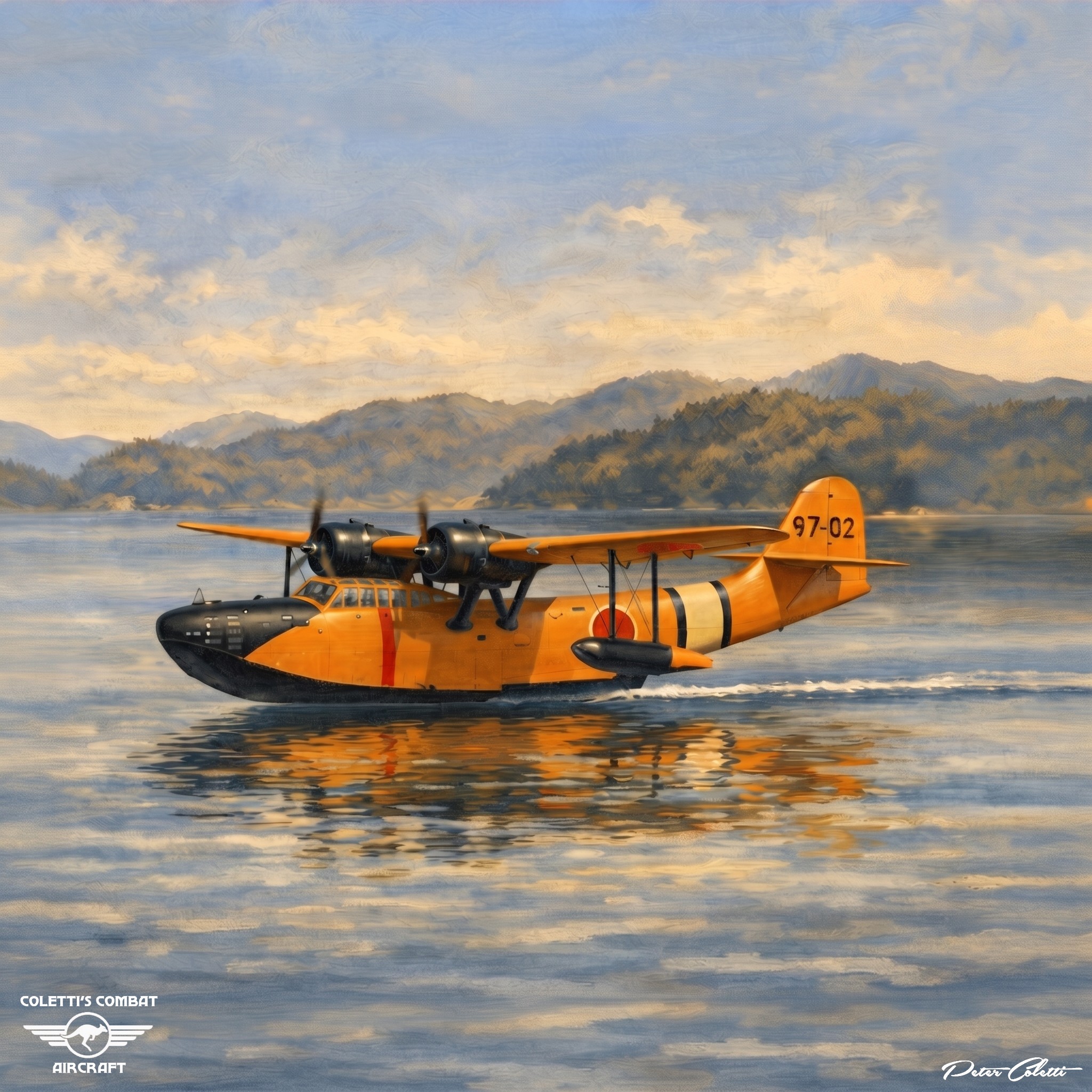

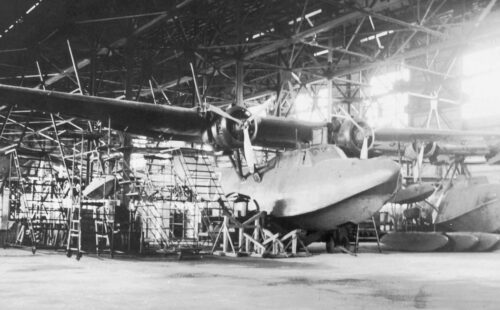

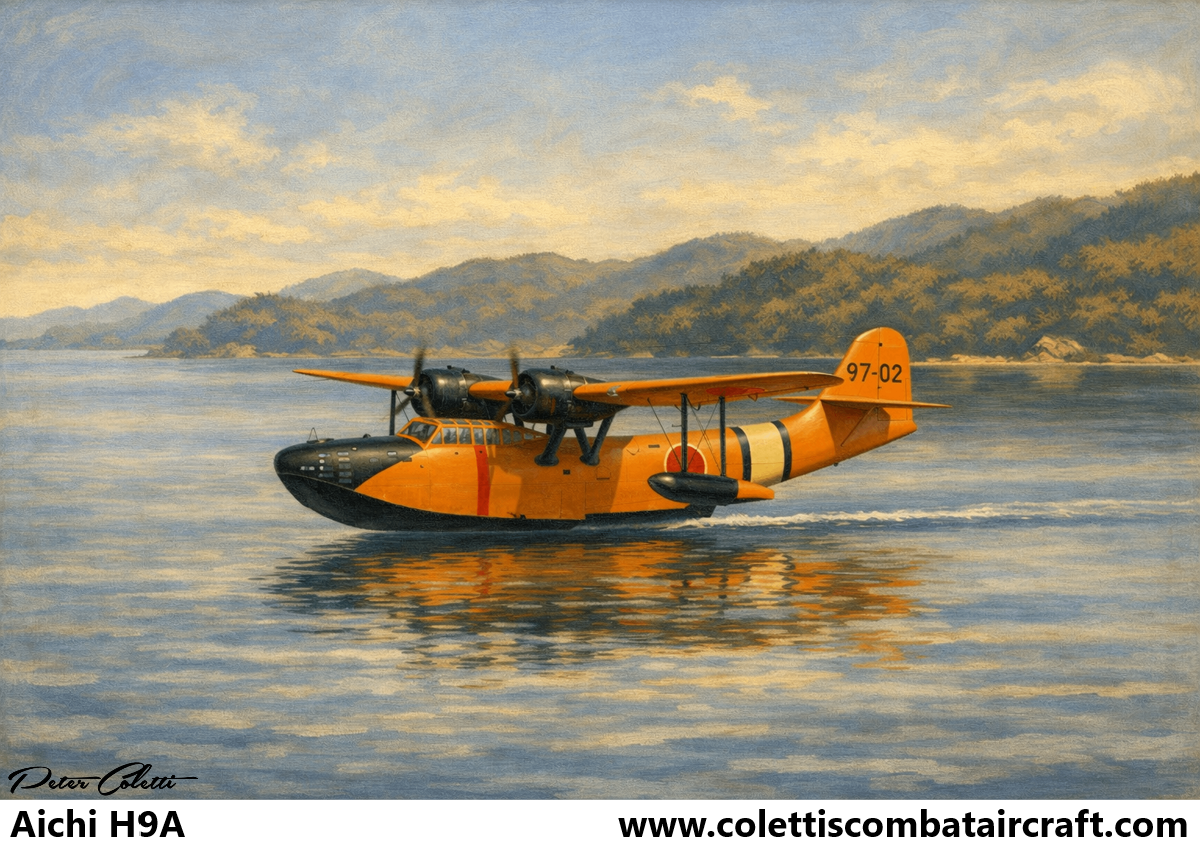

The H9A was a twin‑engine, parasol‑wing flying boat, a configuration chosen to maximise visibility, stability, and low‑speed lift—critical attributes for training missions.

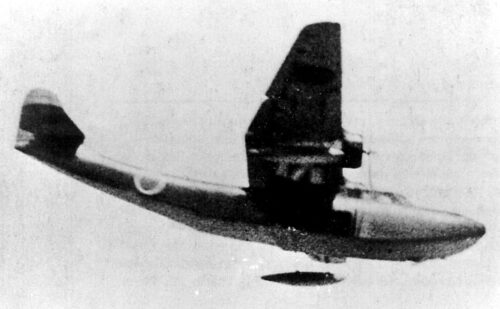

The high parasol wing, supported by struts, kept the engines and propellers clear of spray during water operations while providing excellent downward visibility for instructors and trainees.
Its mixed‑construction airframe combined a metal structure with fabric‑covered control surfaces, balancing durability with weight savings.

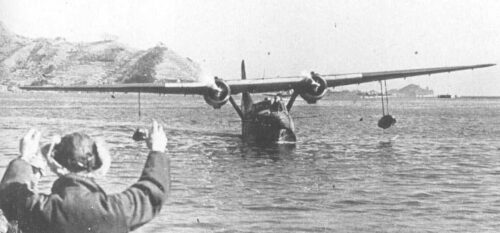

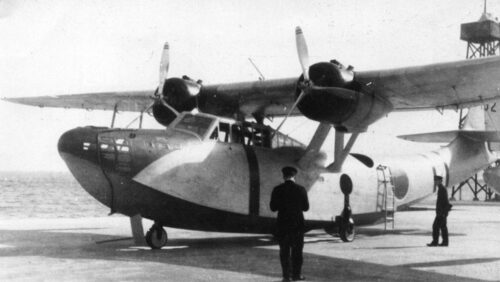

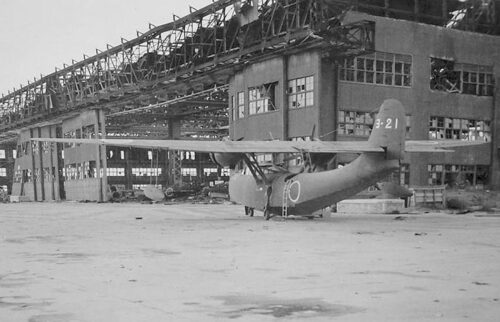

The hull incorporated robust beaching gear and large stabilising floats, enabling reliable water takeoffs and landings even in rough maritime conditions.
The aircraft carried a normal crew of five—pilot, co‑pilot, observer, flight engineer, and radio operator—with seating for three additional trainees, allowing full multi‑crew instruction in navigation, gunnery, radio operation, and flight engineering.

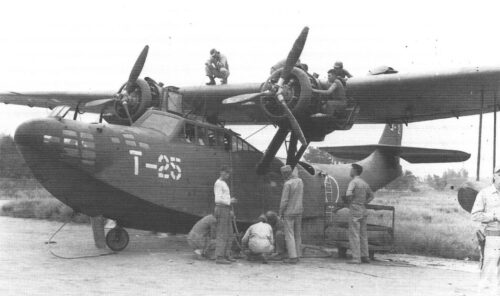

The H9A’s twin Nakajima Ha‑1 Kotobuki 42 or 43 nine‑cylinder radial engines provided 710 hp for takeoff, offering redundancy and safety for training scenarios.
Although not intended for combat, the aircraft included provisions for two flexible 7.7 mm Type 92 machine guns and two 250‑kg bombs or depth charges, enabling realistic training and limited operational use.
Performance Characteristics
Despite its training role, the H9A delivered respectable performance for a medium-sized flying boat of its era.
The H9A1 achieved a maximum speed of 317 km/h (197 mph) at 3,000 m, with a cruise speed of 222 km/h (138 mph) at 1,000 m.
Its range of approximately 2,150 km (1,340 mi) allowed extended over-water training flights, while a service ceiling of 6,780 m (22,240 ft) provided ample altitude for navigation and systems instruction.
The aircraft’s wing loading of 110.6 kg/m² and rate of climb of 4.5 m/s contributed to stable, predictable handling—qualities essential for novice crews.
Although not fast or heavily armed, the H9A was engineered for reliability, ease of maintenance, and operational flexibility across Japan’s dispersed seaplane bases.
Operational Use and WWII Context
Entering service in 1942, the H9A was primarily employed as an advanced flying boat trainer, preparing crews for the IJN’s long‑range reconnaissance and patrol aircraft.
Its obscurity was such that Allied forces did not encounter it until spring 1945, and it never received an Allied reporting name.
Although designed for training, the aircraft’s versatility led to its use in secondary operational roles, particularly during periods of increasing wartime strain.
Between May and June 1942, H9As were employed in anti-submarine patrols, coastal transport, paratroop training, and liaison missions.
Late in the war, a small number were pressed into coastal anti-submarine patrols as Japan faced mounting maritime threats.
However, the type never served outside Japan and remained relatively rare, with only 28 entering active service.
The aircraft’s limited production and specialised role meant it had minimal impact on the broader air war, but it played a crucial behind‑the‑scenes function in sustaining Japan’s flying‑boat operations by training the crews who operated more strategically significant aircraft like the H8K.
Variants
H9A (Prototypes) — Three prototypes built by Aichi in 1940, used for evaluation and refinement.
H9A1 (Production Model) — The sole production version, with 24 aircraft built by Aichi and 4 by Nippon Hikoki.
This model incorporated structural and aerodynamic improvements identified during prototype testing.
No further variants were developed, reflecting the aircraft’s narrow training role and Japan’s shifting wartime priorities.
Technical Summary (H9A1)
Crew
5 + 3 trainees
Length
16.95 m
Wingspan
24 m
Height
5.25 m
Empty Weight
4,900 kg
Max Takeoff Weight
7,500 kg
Engines
2 × Nakajima Ha‑1 Kotobuki 42/43 radials (710 hp each)
Max Speed
317 km/h
Range
~2,150 km
Armament
1–2 × 7.7 mm Type 92 MGs; 2 × 250‑kg bombs or depth charges
Conclusion
The Aichi H9A occupies a small but significant niche in World War II aviation history.
Though overshadowed by frontline combat aircraft, it was the only dedicated flying-boat trainer produced in meaningful numbers by any nation during the war.
Its design emphasised stability, reliability, and multi‑crew training capability, enabling Japan to field competent crews for its large maritime patrol aircraft.
While its operational impact was limited, the H9A’s role in sustaining Japan’s long‑range seaplane operations underscores its importance as a specialised but essential component of the IJN’s aviation infrastructure.
