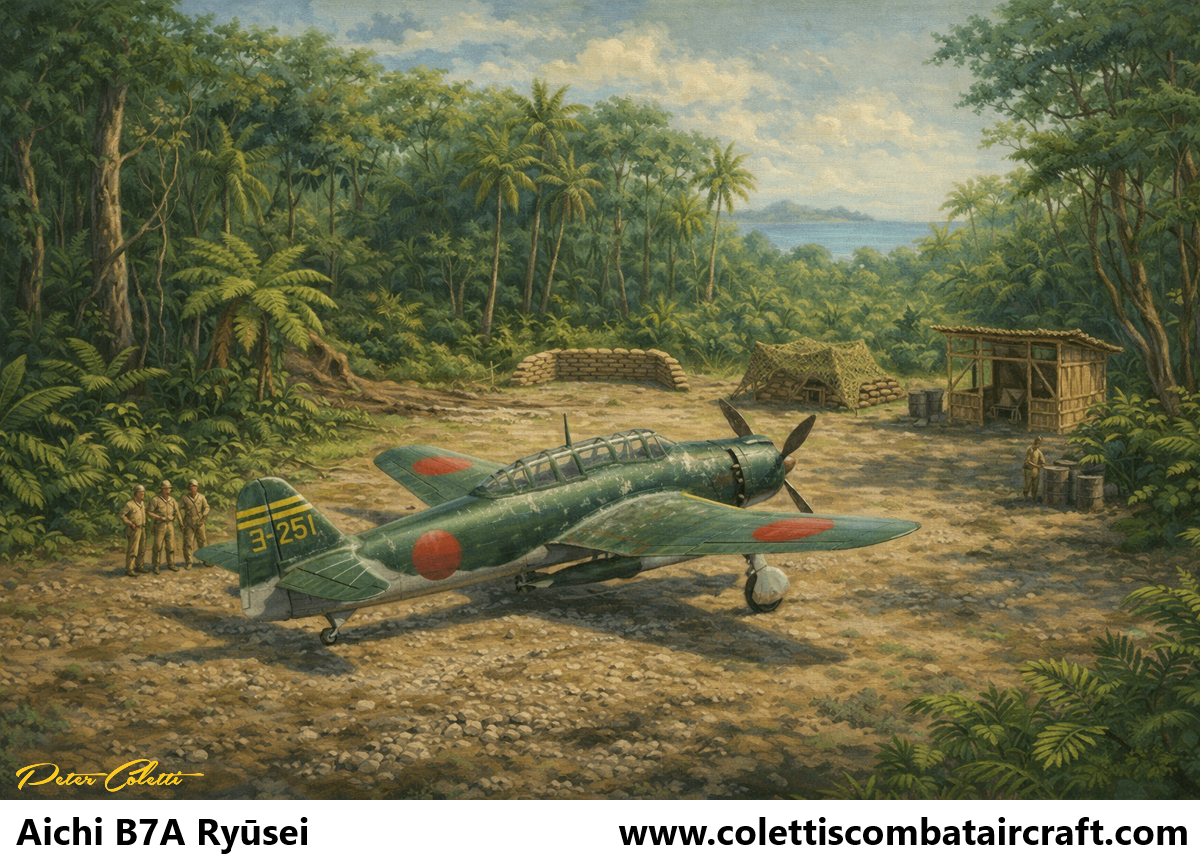

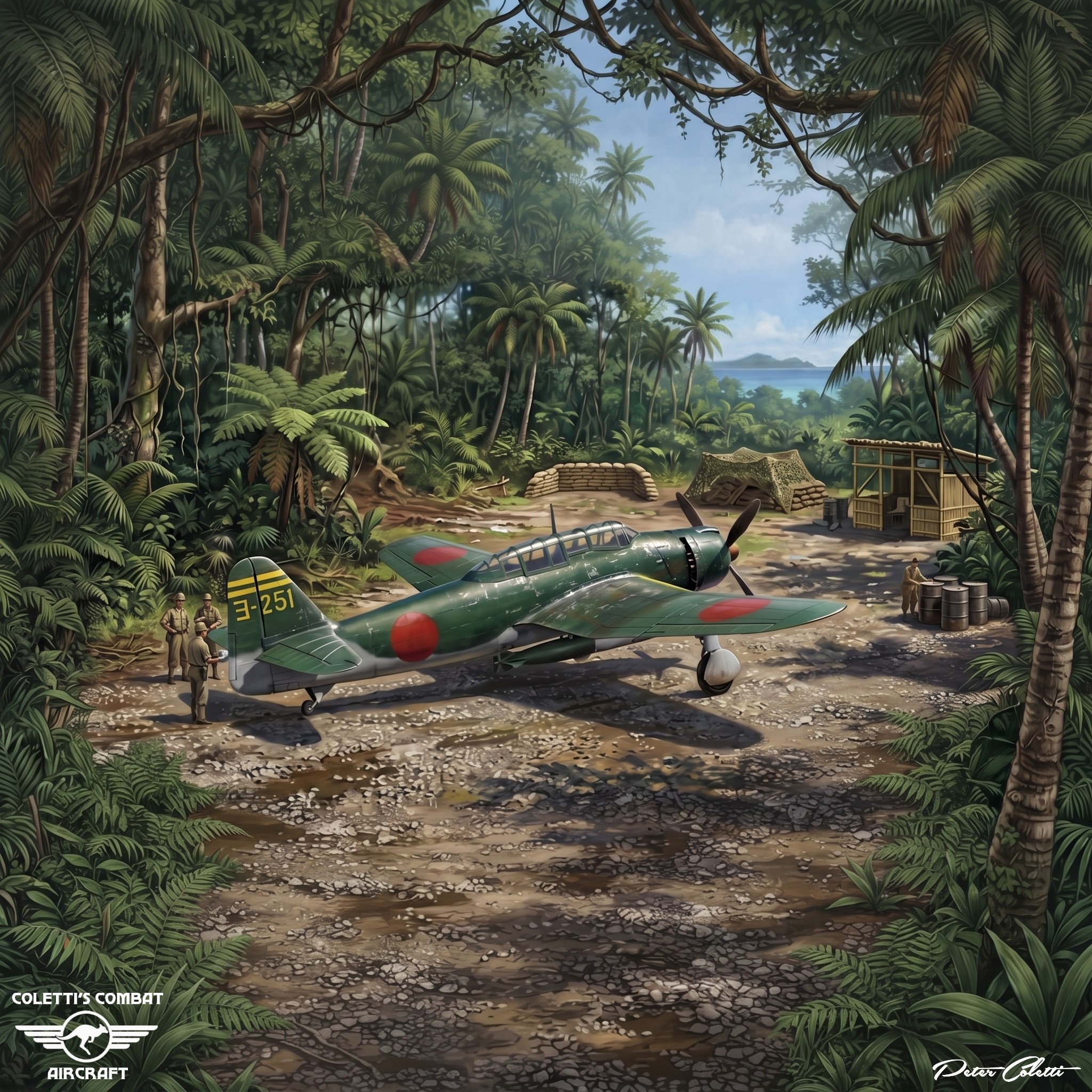

Aichi B7A Ryusei

The B7A Ryusei was designed in response to a 1941 16-Shi requirement issued by the Imperial Japanese Navy Air Service for a carrier attack bomber that would replace both the Nakajima B6N Tenzan torpedo plane and the Yokosuka D4Y Suisei dive bomber in IJN service.

It was intended for use aboard a new generation of Taihō-class carriers, the first of which was laid down in July 1941.

Because the deck elevators on the Taihōs had a larger square area than those of older Japanese carriers, the longstanding maximum limit of 11 m (36 ft) on carrier aircraft length could now be lifted.

Chief Engineer Toshio Ozaki chose a mid-wing arrangement for the B7A to provide for an internal bomb-bay and to ensure enough clearance for the plane’s 3.5 m (11 ft) four-bladed propeller.

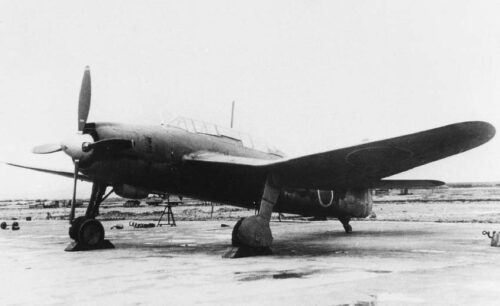

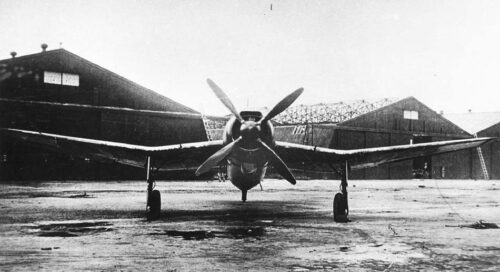

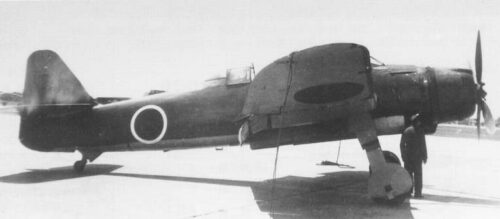

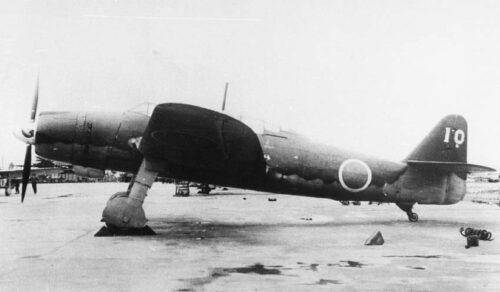

This in turn necessitated the adoption of an inverted gull wing, reminiscent of the F4U Corsair, in order to shorten the length of the main landing gear.

The wing featured extendable ailerons with a ten-degree range of deflection, enabling them to act as auxiliary flaps.

Dive brakes were fitted underneath just outboard of the fuselage.

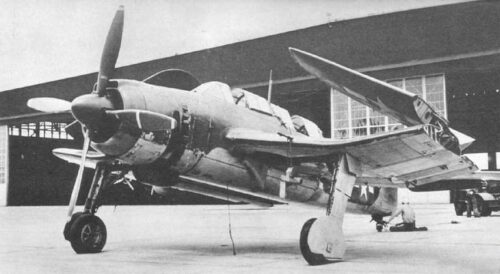

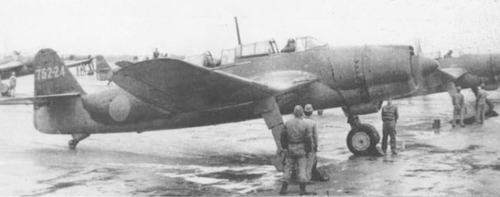

The B7A’s outer wing panels were designed to fold upwards hydraulically for carrier stowage, reducing its overall span from 14.4 m (47 ft) to approximately 7.9 m (26 ft).

Selection of a power plant was dictated by the Japanese Navy which requested that Aichi design the aircraft around the 1,360 kW (1,825 hp) Nakajima NK9C Homare 12 18-cylinder two-row air-cooled radial engine.

This was expected to become the Navy’s standard aircraft engine in the 1,340 kW (1,800 hp) to 1,641 kW (2,200 hp) range.

One production model B7A2 was later fitted with a 1,491 kW (2,000 hp) Nakajima Homare 23 radial engine.

The B7A had a weight-carrying capacity stemming from its requirements, resulting in a weapons load no greater than its predecessors.

The presence of an internal bomb bay with two high-load-capability attachment points allowed the aircraft to carry two 250 kg (550 lb) or six 60 kg (132 lb) bombs.

Alternatively, it could carry a single externally mounted Type 91 torpedo, weighing up to 848 kg (1,870 lb).

Defensive armament initially consisted of two 20mm Type 99 Model 2 cannons in the wing roots and one flexible 7.92mm Type 1 machine-gun mounted in the rear cockpit.

Later production models of the B7A2 featured a 13mm Type 2 machine-gun in place of the 7.92mm gun.

Despite the plane’s weight and size, it displayed fighter-like handling and performance, beating the version of the A6M Zero in service at the time.

It was fast and highly manoeuvrable.

Given the codename “Grace” by the Allies, the B7A first flew as a prototype in May 1942, but teething problems with the experimental NK9C Homare engine and necessary modifications to the airframe meant that the type did not enter into production until two years later in May 1944.

Nine prototype B7A1s were built and 80 production version B7A2s completed by Aichi before a severe earthquake in May 1945 destroyed the factory at Funakata where they were being assembled.

A further 25 examples were produced at the 21st Naval Air Arsenal at Omura.

Specifications

Crew

2

Length

11.49 m (37 ft 8 in)

Wingspan

14.4 m (47 ft 3 in)

Height

4.075 m (13 ft 4 in)

Wing area

35.4 m2 (381 sq ft)

Empty weight

3,810 kg (8,400 lb)

Gross weight

5,625 kg (12,401 lb)

Max take-off weight

6,500 kg (14,330 lb)

Powerplant

1 × Nakajima NK9C Homare 12, 18-cylinder air-cooled radial piston engine

1,361 kW (1,825 hp) for take-off

1,245 kW (1,670 hp) at 2,400 m (7,874 ft)

1,163 kW (1,560 hp) at 6,550 m (21,490 ft)

Propellers

4-bladed constant-speed propeller, 3.5 m (11 ft 6 in) diameter

Performance

Maximum speed

567 km/h (352 mph, 306 kn) at 6,550 m (21,490 ft)

Range

1,852 km (1,151 mi, 1,000 nmi)

Ferry range

3,037 km (1,887 mi, 1,640 nmi)

Service ceiling

11,250 m (36,910 ft)

Rate of climb

9.6 m/s (1,890 ft/min)

Time to altitude

4,000 m (13,123 ft) in 6 minutes 55 seconds

Wing loading

158.9 kg/m2 (32.5 lb/sq ft)

Power/mass

0.242 kW/kg (0.147 hp/lb)

Armament

Guns

2× 20 mm (0.787 in) cannon in the wings.

1× 7.92 mm (0.312 in) Type 1 machine gun

Or

13 mm (0.512 in) Type 2 machine guns in the rear cockpit.

Bombs

800 kg (1,764 lb) of general ordnance

Or

1× 800 kg (1,764 lb) torpedo.
